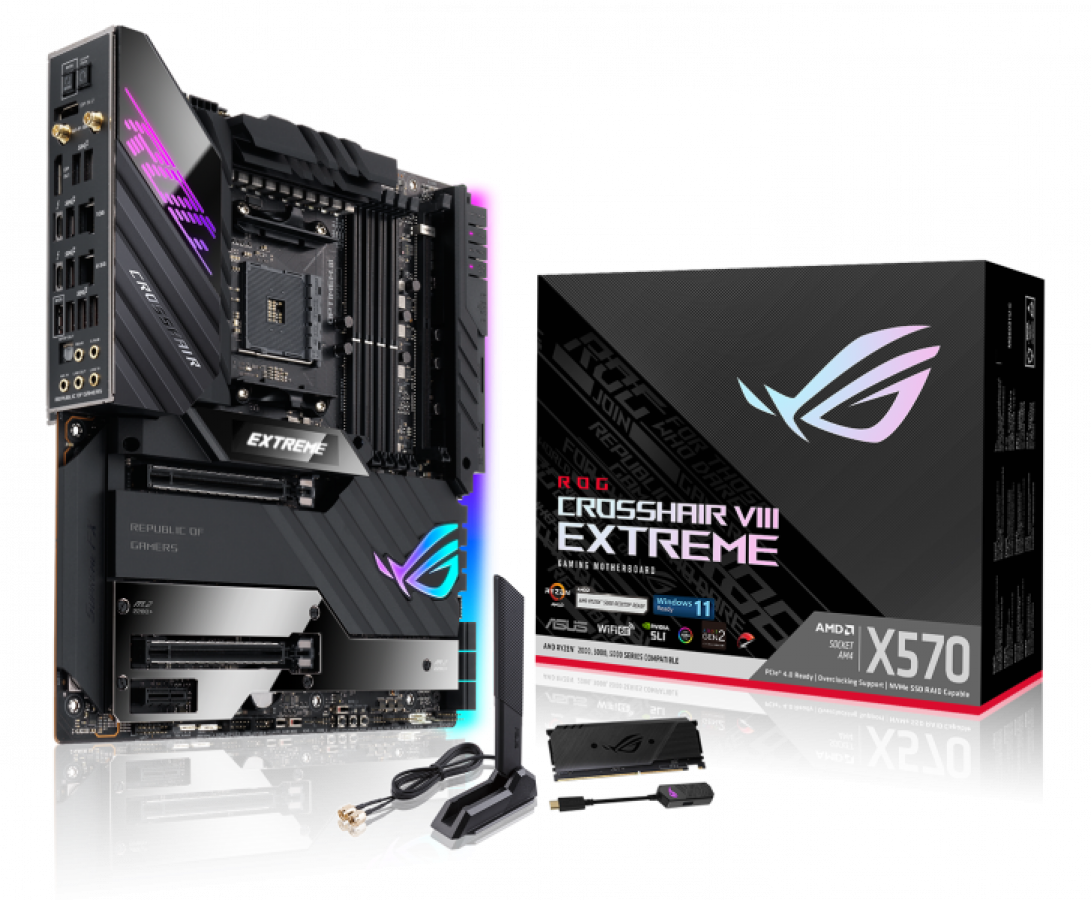

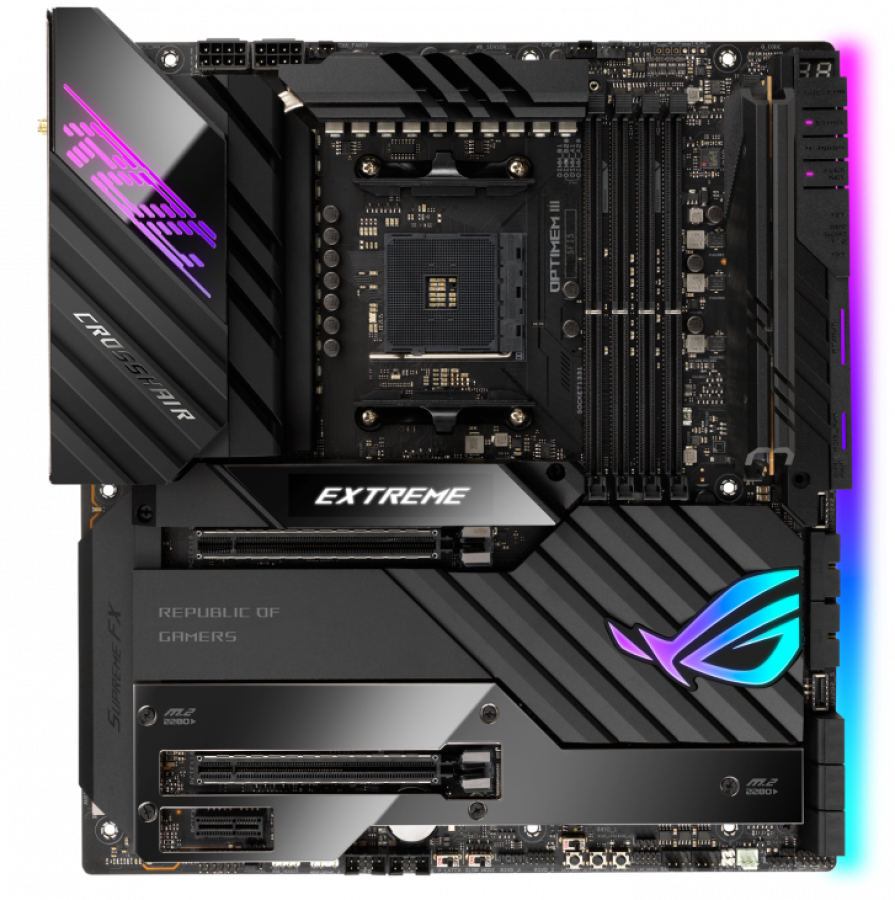

Asus ROG Crosshair VIII Extreme

AMD X570

Extended ATX

AMD

AM4

AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors

DDR4

AMD Ryzen™ 5000 and 3000 Series Desktop Processors
4 x DIMM, max. 128GB, DDR4 5000(OC) / 4866(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory
AMD Ryzen™ 5000 G-Series and 4000 G-Series Desktop Processors
4 x DIMM, max. 128GB, DDR4 5100(OC) / 5000(OC) / 4866(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory
AMD Ryzen™ 2000 Series Desktop Processors
4 x DIMM, max. 128GB, DDR4 3600(OC) / 3466(OC) / 3400(OC) / 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory
AMD Ryzen™ 3000 G-Series and 2000 G-Series Desktop Processors
4 x DIMM, max. 128GB, DDR4 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory

4

128 GB

Yes

5

2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support
Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
2 x 4-pin Chassis Fan header(s)
2 x 4-pin Radiator Fan header(s)
2 x W_PUMP+ header(s)
1 x WB_SENSOR header(s)
1 x 2-pin Water In header
1 x 2-pin Water Out header
1 x 3-pin Water Flow header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
1 x 6-pin PCIe Graphics Card/ PD 3.0 connector
Storage related
3 x M.2 slots (Key M)
1 x DIMM.2 slot supports 2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C®, PD 3.0 up tp DC 5V/3A 60W fast charging technology)
1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)
2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Miscellaneous
3 x AURA Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x BIOS Switch button
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x LN2 Mode jumper
6 x ProbeIt Measurement Points
1 x ReTry button
1 x RSVD switch
2 x RSVD header
1 x V_Latch
1 x Safe Boot button
1 x Slow Mode switch
1 x Speaker header
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header

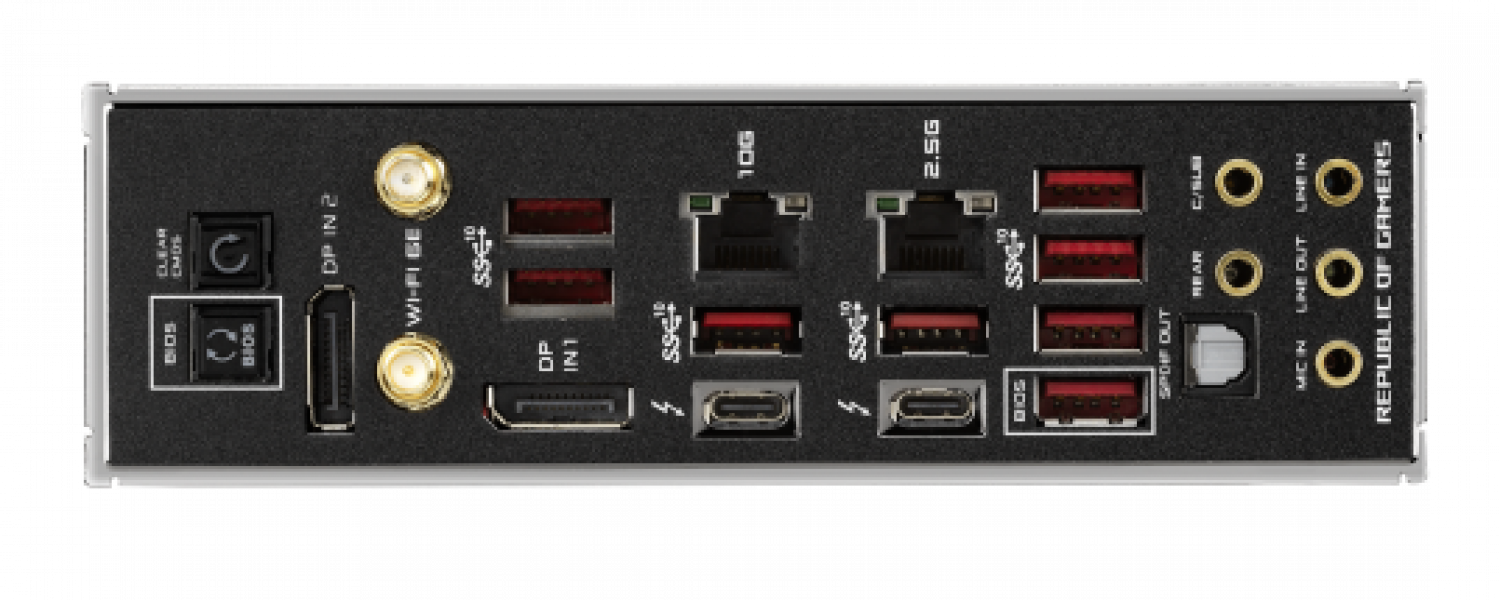

2 x Thunderbolt™ 4 USB Type-C® port(s)
2 x DisplayPort IN ports for Thunderbolt™ 4
8 x USB 3.2 Gen 2 port(s) (8 x Type-A)
1 x ASUS Wi-Fi Module
1 x Intel® I225-V 2.5Gb Ethernet port
1 x Marvell® AQtion AQC113CS 10Gb Ethernet port
5 x LED-illuminated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button

2 years
