Product main parameters
Chipset AMD B650
Form factor ATX
Processor manufacturer AMD
Socket AM5
DDR type DDR5
Number of slots 4
M.2 Connections 3
Article B650STEELLEGENDWIFI
Product code BD118971
Manufacturer Asrock
Weight (kg)
Bar codes
All parameters
DETAILS
Chipset
AMD B650
Form factor
ATX
PROCESSOR
Processor manufacturer
AMD
Socket
AM5
Processor type
AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
RAM
DDR type
DDR5
DDR speed
7200+(OC)
Number of slots
4
Max memory size
256 GB
AUDIO AND NETWORK DEVICES
Integrated audio card
LAN
WiFi
Yes
EXPANSION CONNECTIONS
M.2 Connections
3
Internal connections
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen1 Header

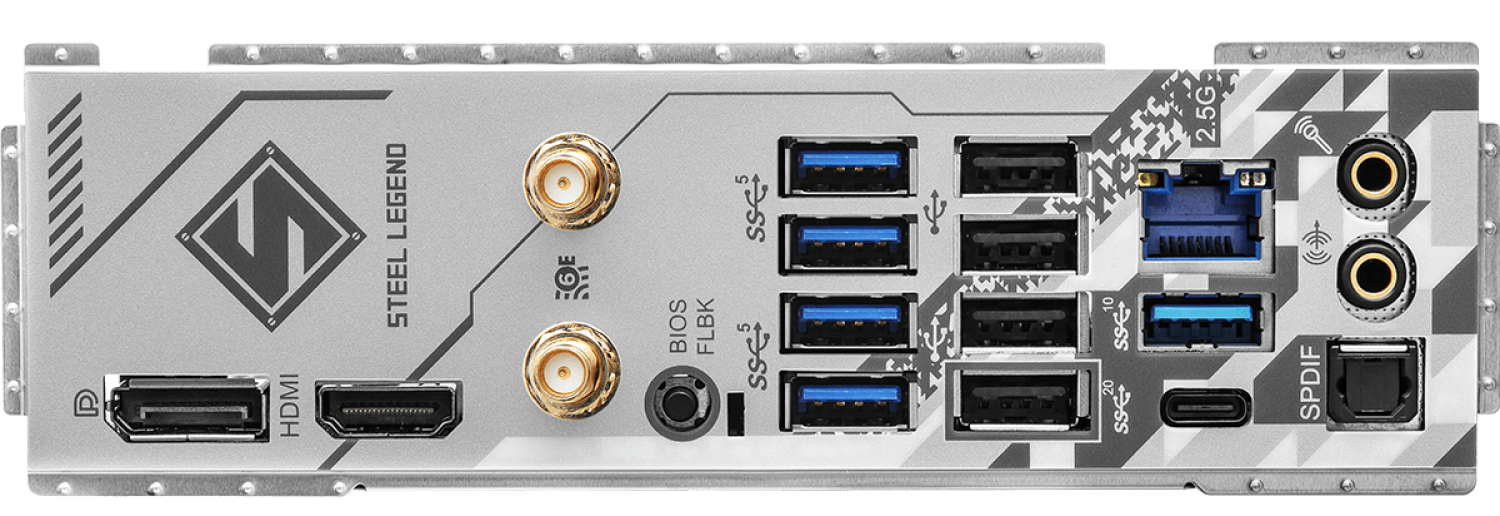

External connections
- 2 x Antenna Ports
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x Optical SPDIF Out Port
- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
- 4 x USB 3.2 Gen1 Type-A Ports (USB32_34 support Ultra USB Power.)
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- 1 x Line Out Jack (Gold Audio Jack)
- 1 x Microphone Input Jack (Gold Audio Jack)
