Product main parameters
Chipset Intel Z790
Form factor ATX
Processor manufacturer Intel
Socket LGA 1700
DDR type DDR5
Number of slots 2
M.2 Connections 2
Article Z790I LIGHTNING WIFI
Product code BD118977
Manufacturer Asrock
Weight (kg)
Bar codes
4710483946660
All parameters
DETAILS
Chipset
Intel Z790
Form factor
ATX
PROCESSOR
Processor manufacturer
Intel
Socket
LGA 1700
Processor type
14th, 13th & 12th Gen Intel Core Processors
RAM
DDR type
DDR5
DDR speed
8600+(OC)
Number of slots
2
Max memory size
128 GB
AUDIO AND NETWORK DEVICES
Integrated audio card
LAN
WiFi
Yes
EXPANSION CONNECTIONS
M.2 Connections
2
Internal connections
- 2 x Addressable LED Headers*
- 1 x Thermistor Cable Header
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
- 2 x Chassis Fan Connectors (4-pin)***
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen1 Header

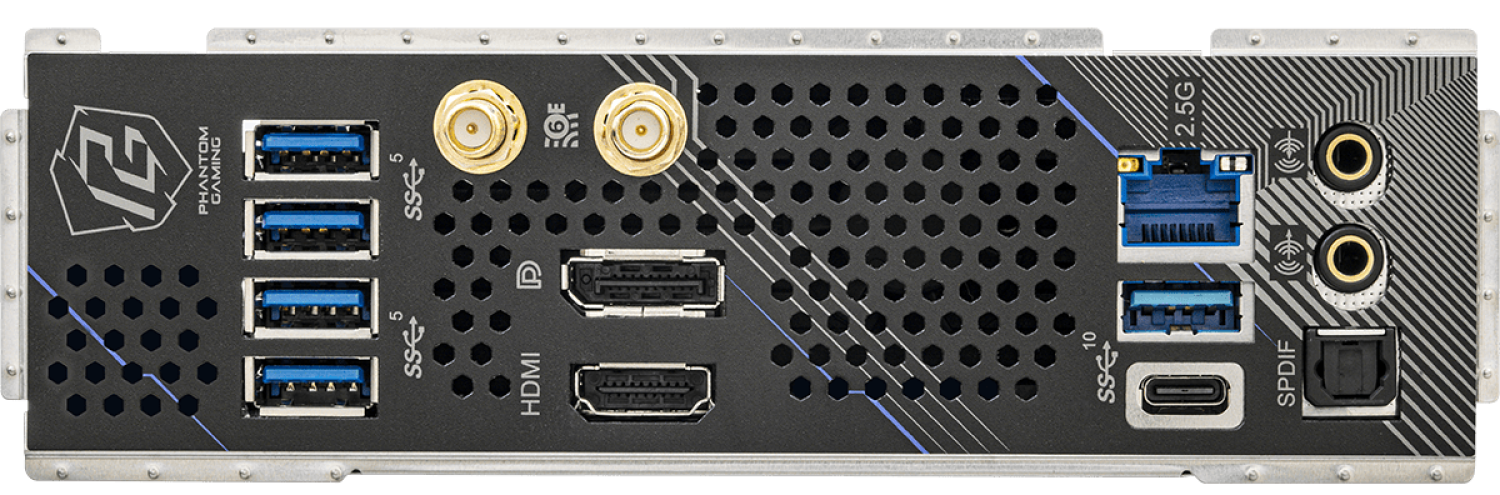

External connections
- 2 x Antenna Ports
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x Optical SPDIF Out Port
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
- 4 x USB 3.2 Gen1 Ports
- 1 x RJ-45 LAN Port
- 1 x Line Out Jack (Gold Audio Jack)
- 1 x Microphone Input Jack (Gold Audio Jack)
