Product main parameters
Chipset Intel Z890
Form factor ATX
Processor manufacturer Intel
Socket LGA 1851
DDR type DDR5
Number of slots 4
M.2 Connections 4
Article TUF GAMING Z890-PRO WIFI
Product code BD122583
Manufacturer Asus
Weight (kg)
Bar codes
4711387762639
All parameters
DETAILS
Chipset
Intel Z890
Form factor
ATX
PROCESSOR
Processor manufacturer
Intel
Socket
LGA 1851
Processor type
Intel Core Ultra Processors (Series 2)
RAM
DDR type
DDR5
DDR speed
9066+MT/s (OC)
Number of slots
4
Max memory size
192GB
AUDIO AND NETWORK DEVICES
Integrated audio card
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
LAN
TUF LANGuard
WiFi
Yes
EXPANSION CONNECTIONS
M.2 Connections
4
Internal connections
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header

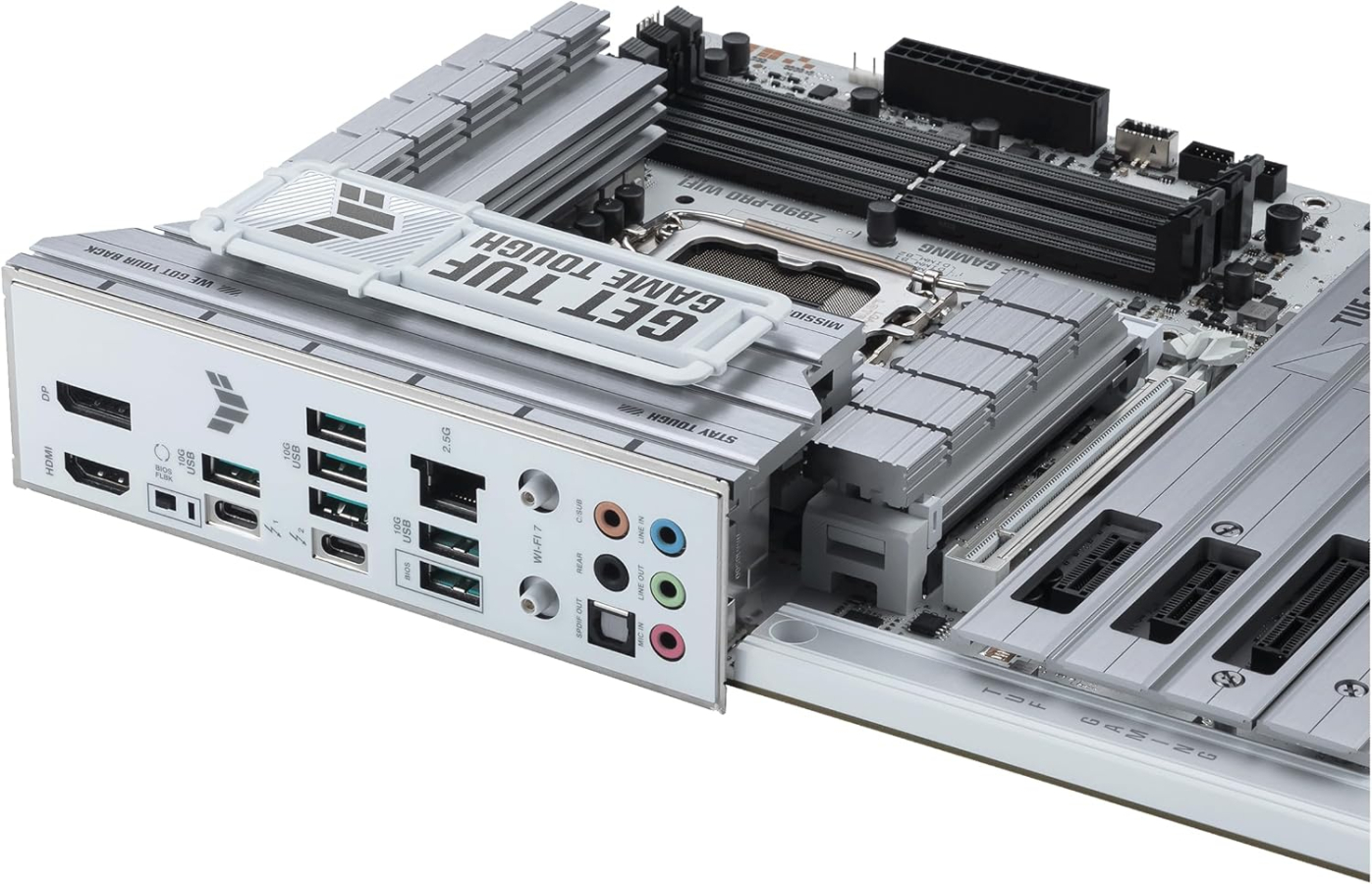

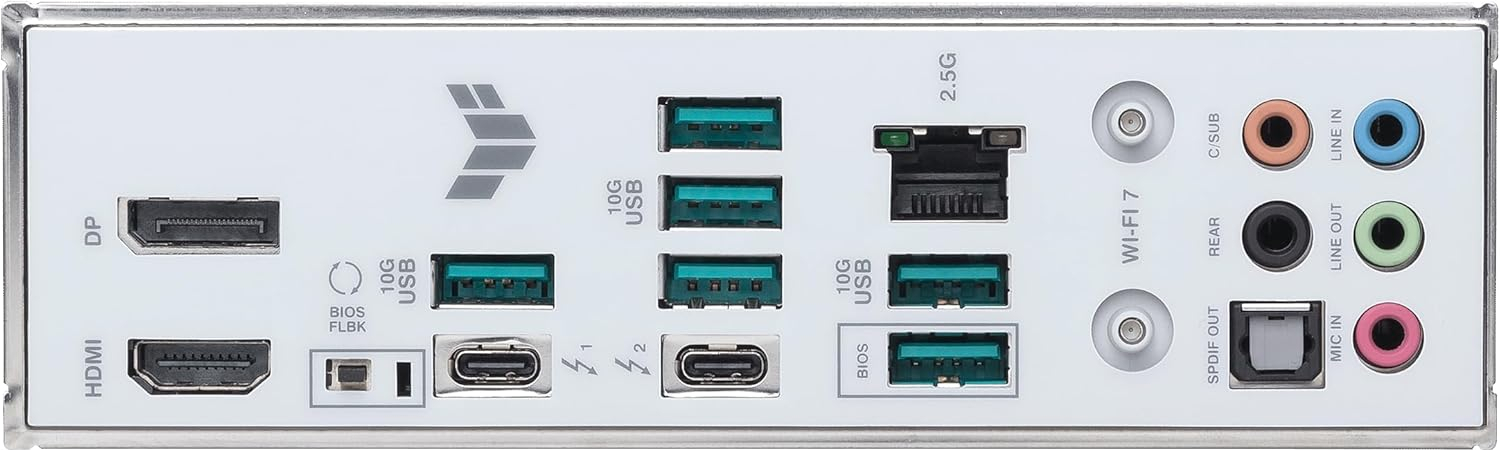

External connections
2 x Thunderbolt™ 4 USB Type-C® ports
6 x USB 10Gbps ports (6 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
