Product main parameters
Chipset AMD B850
Form factor Micro ATX
Processor manufacturer AMD
Socket AM5
DDR type DDR5
Number of slots 4
M.2 Connections 3

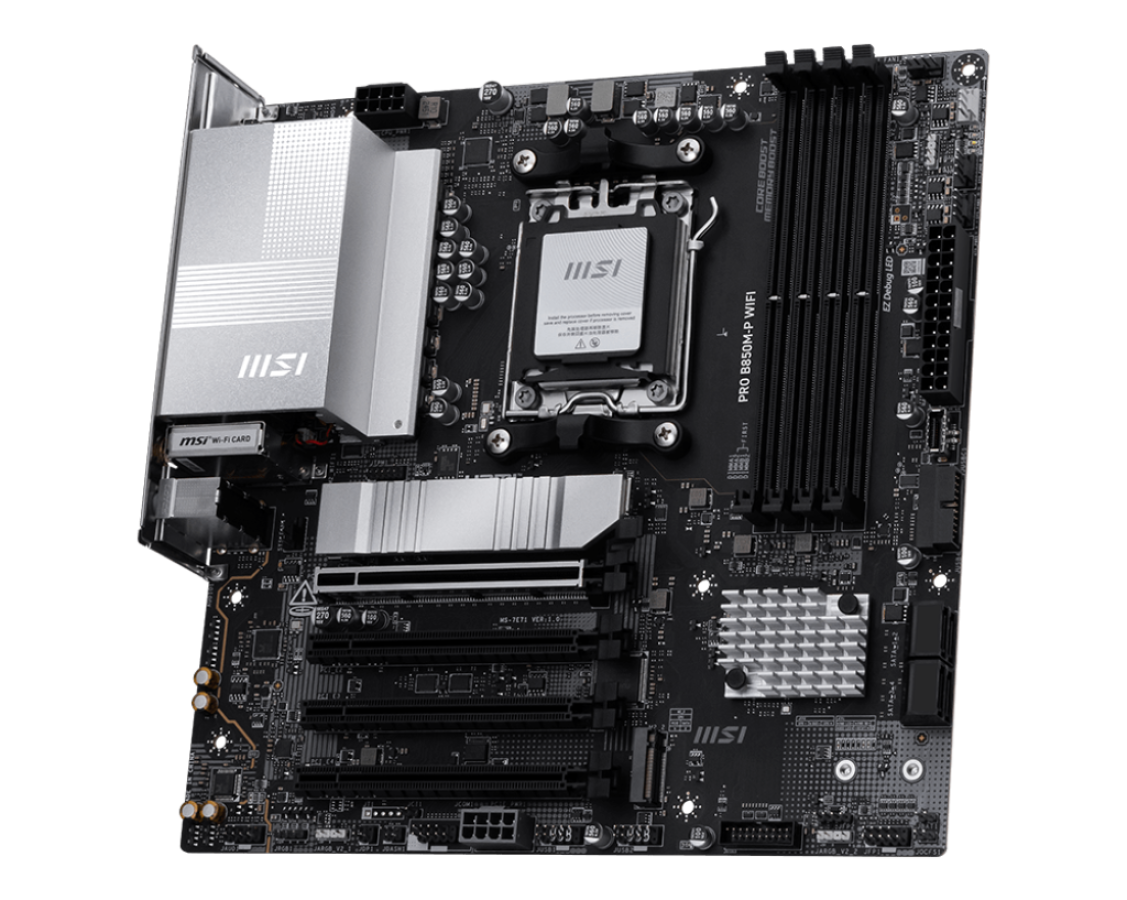

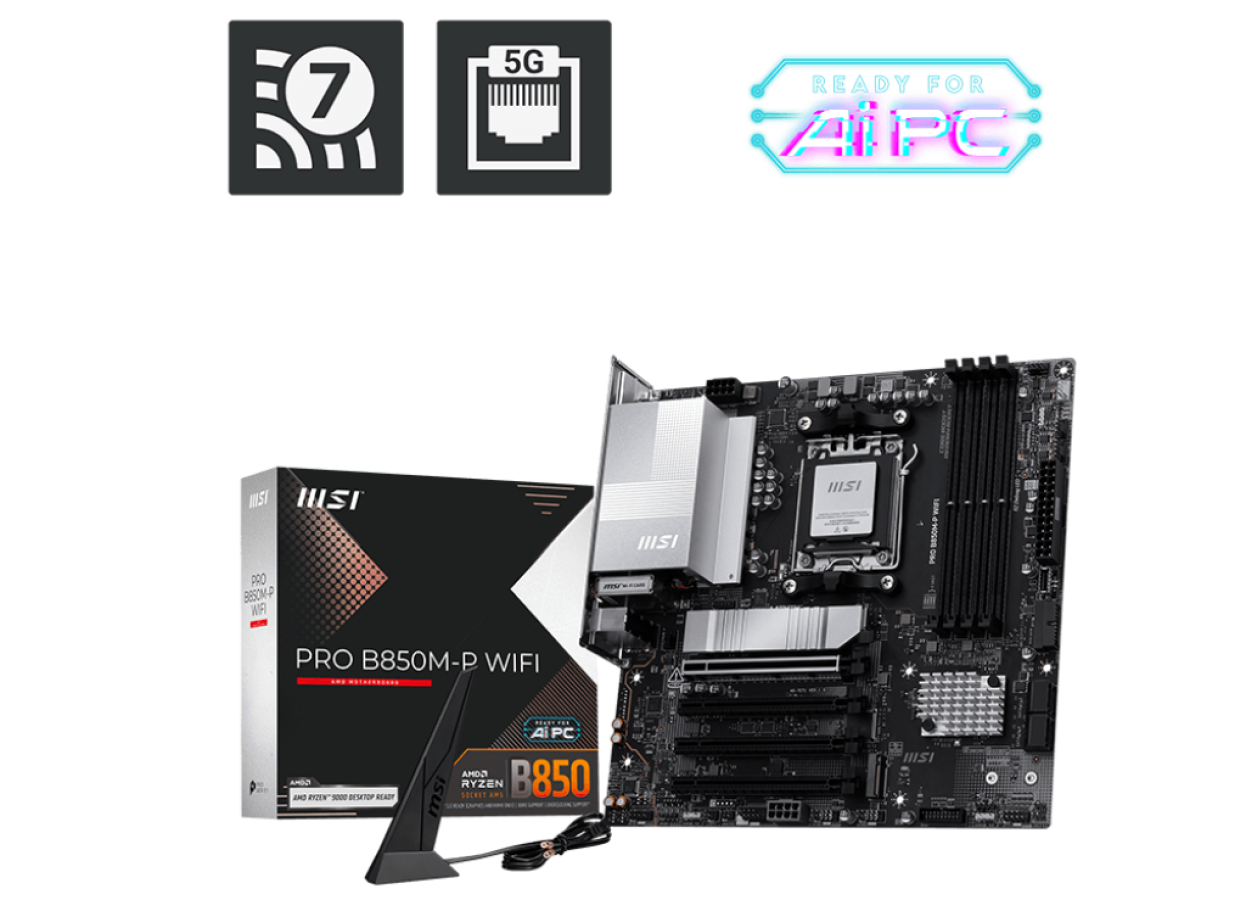

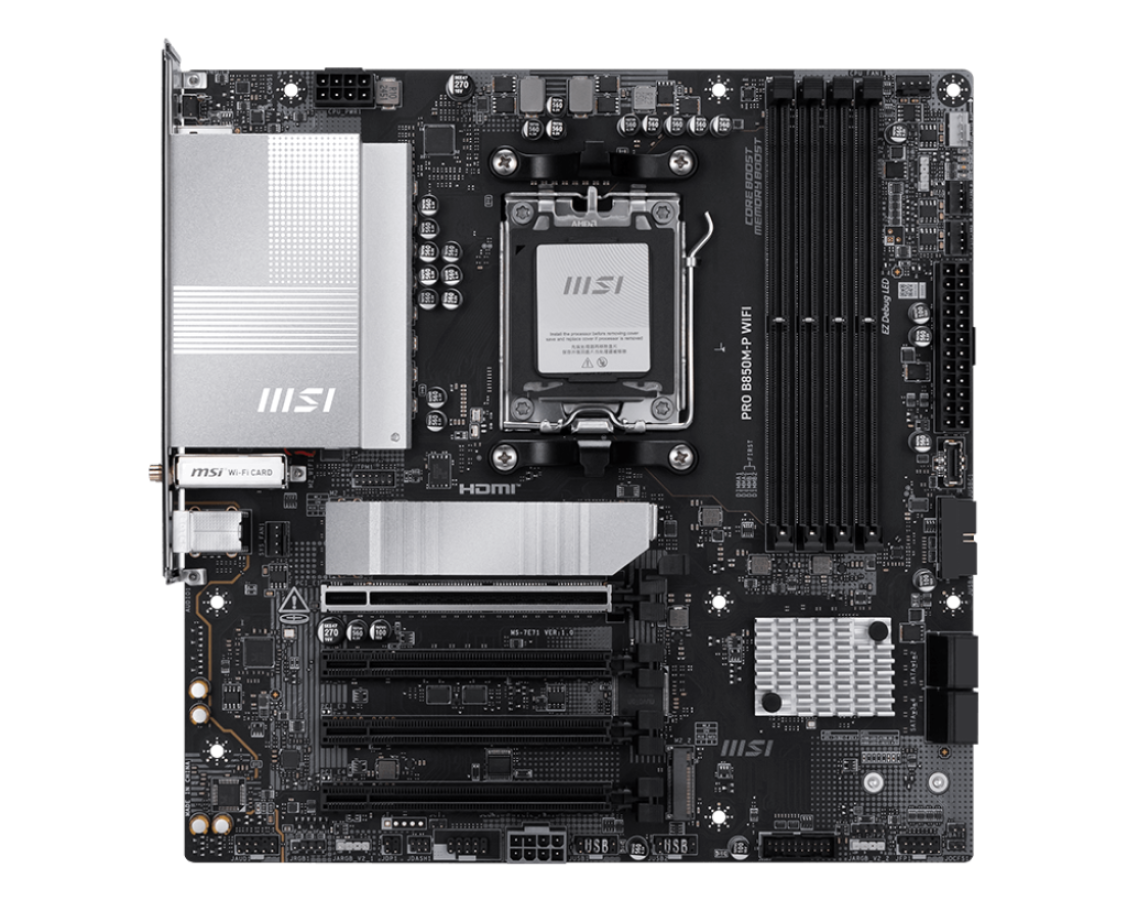

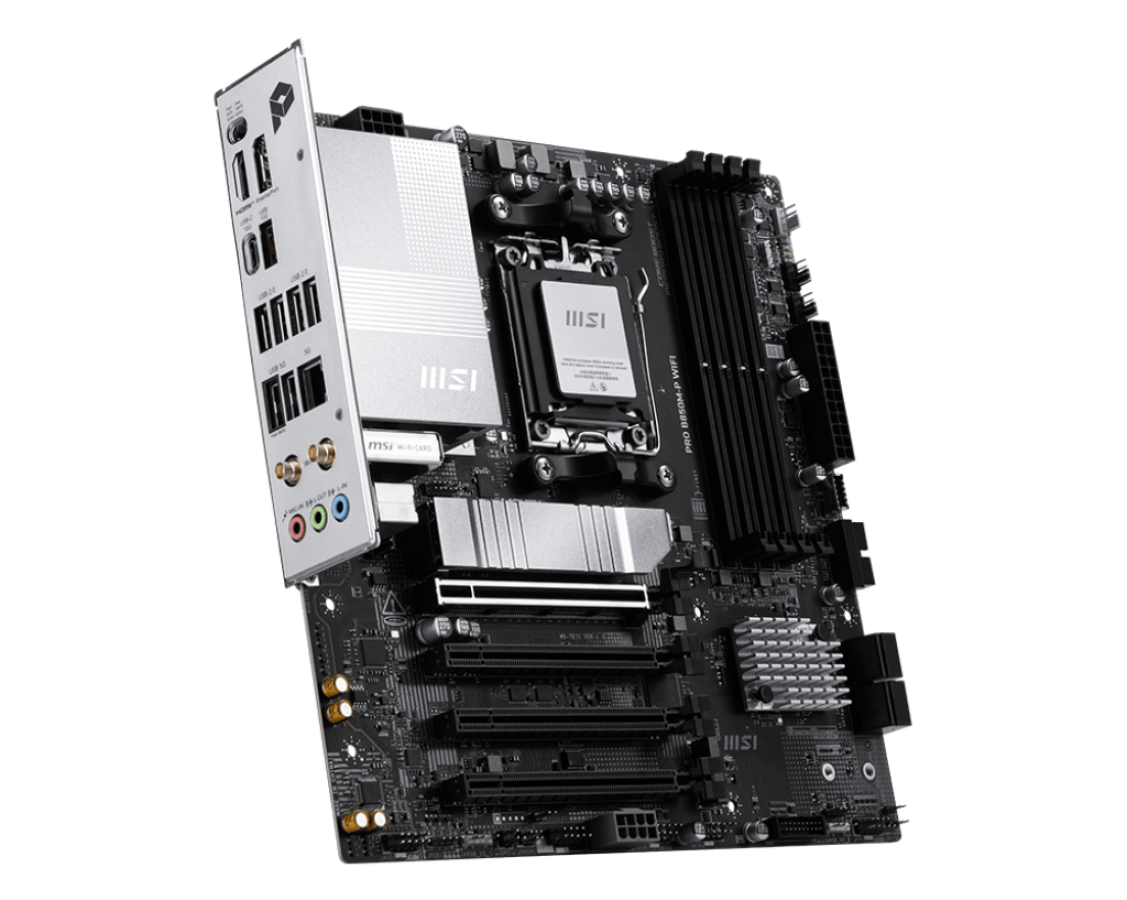

Article PRO B850M-P WIFI
Product code BD127313
Manufacturer MSI
Weight (kg)
Bar codes
4711377350181
All parameters
DETAILS
Chipset
AMD B850
Form factor
Micro ATX
PROCESSOR
Processor manufacturer
AMD
Socket
AM5
Processor type
AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Realtek® 8126VB 5G LAN
Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
WiFi
Yes
EXPANSION CONNECTIONS
M.2 Connections
3
Internal connections
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports

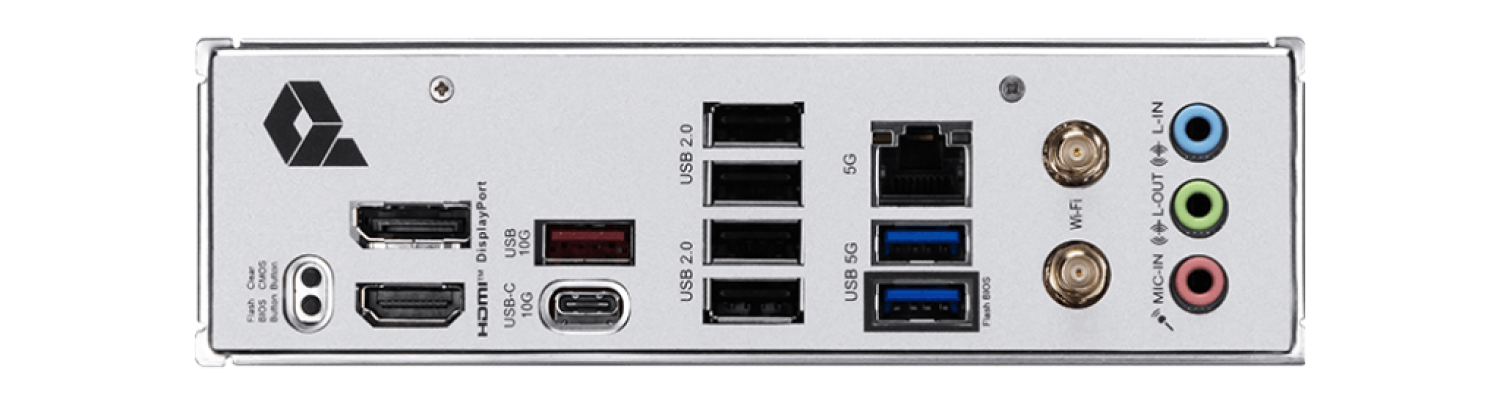

External connections
Clear CMOS Button
DisplayPort
USB 10Gbps Type-A
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
HDMI™
USB 10Gbps Type-C
USB 5Gbps Type-A
