Product main parameters
Chipset Intel Z890
Form factor ATX
Processor manufacturer Intel
Socket LGA 1851
DDR type DDR5
Number of slots 4
M.2 Connections 3

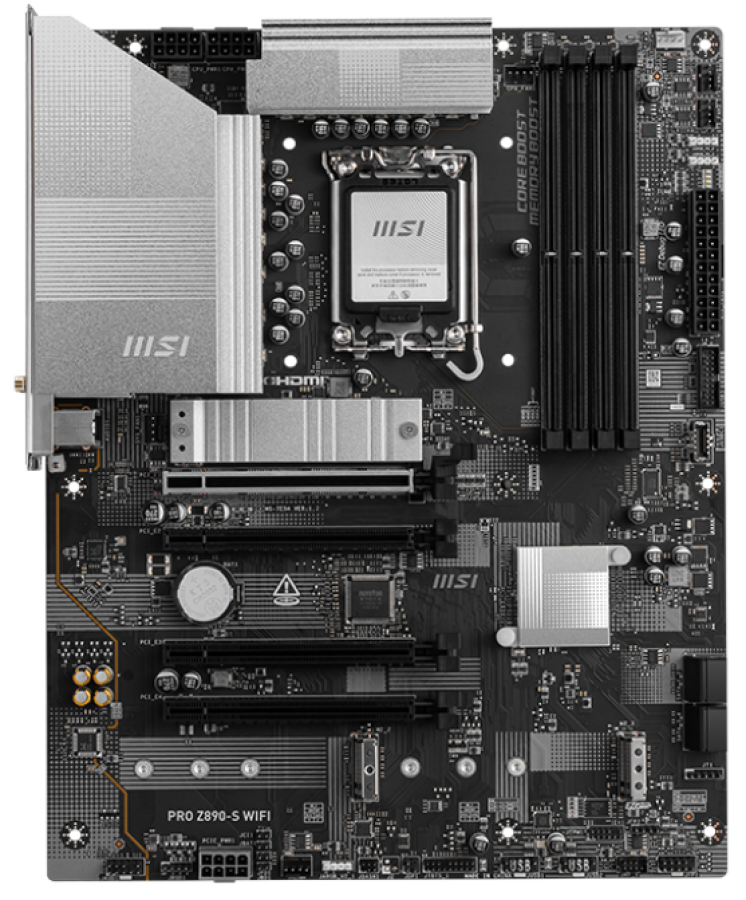

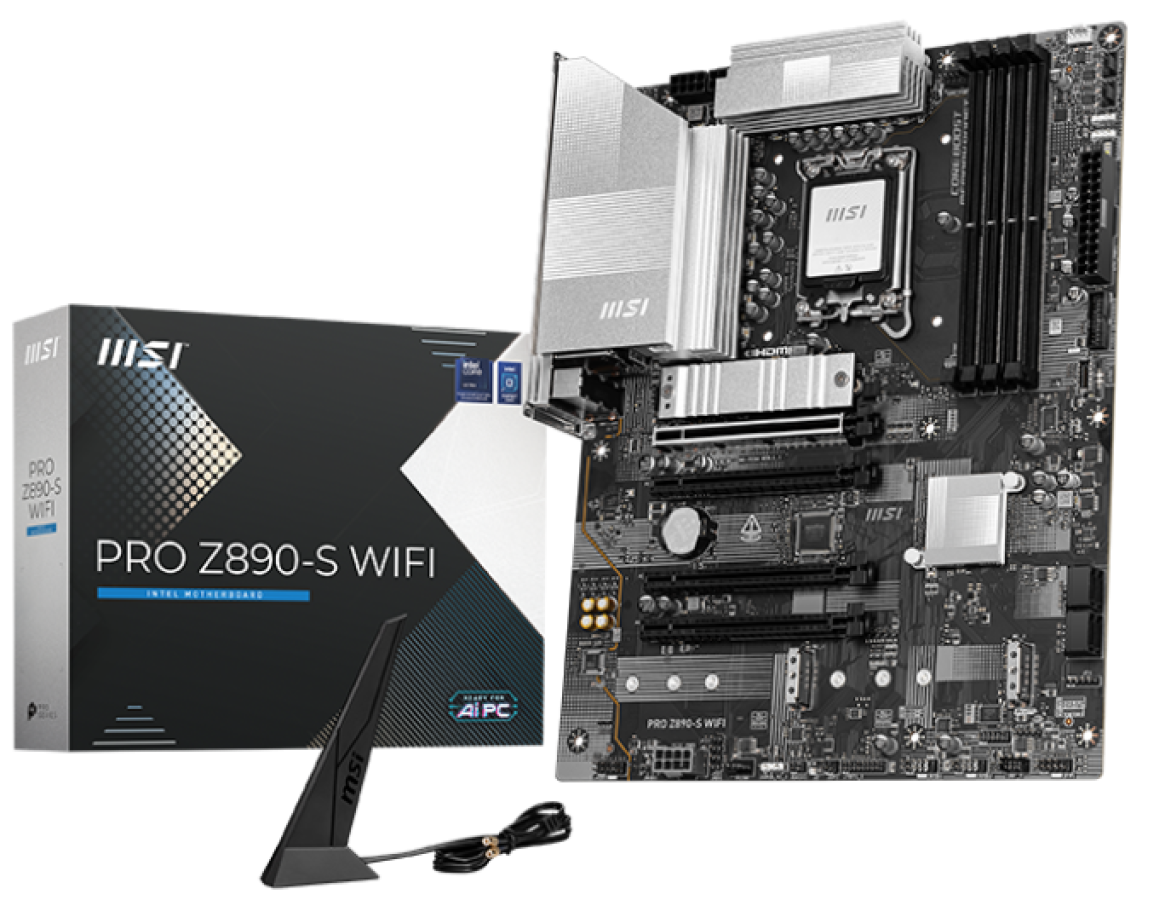

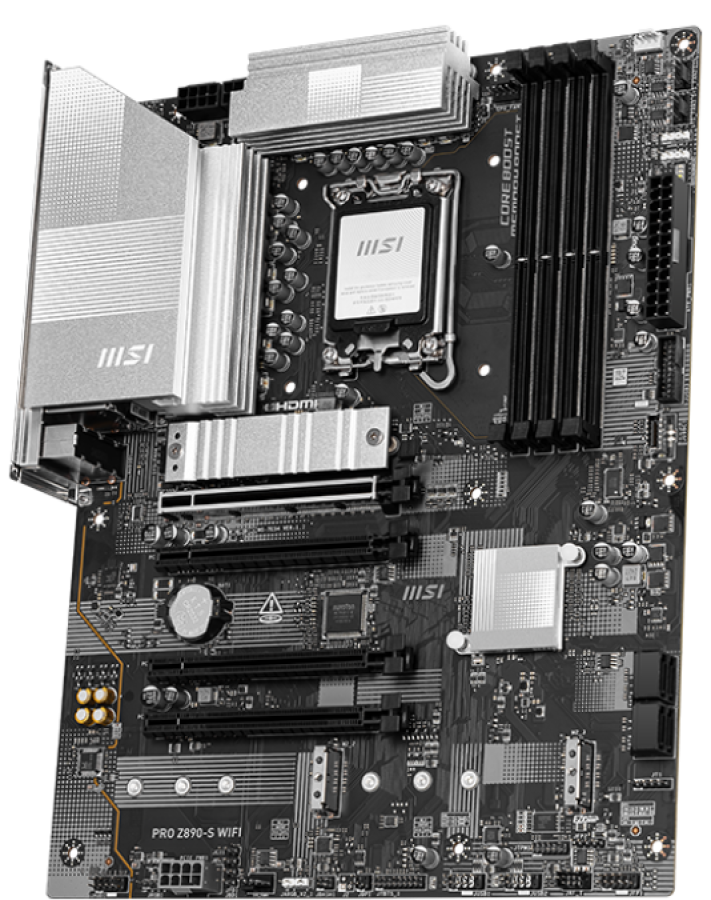

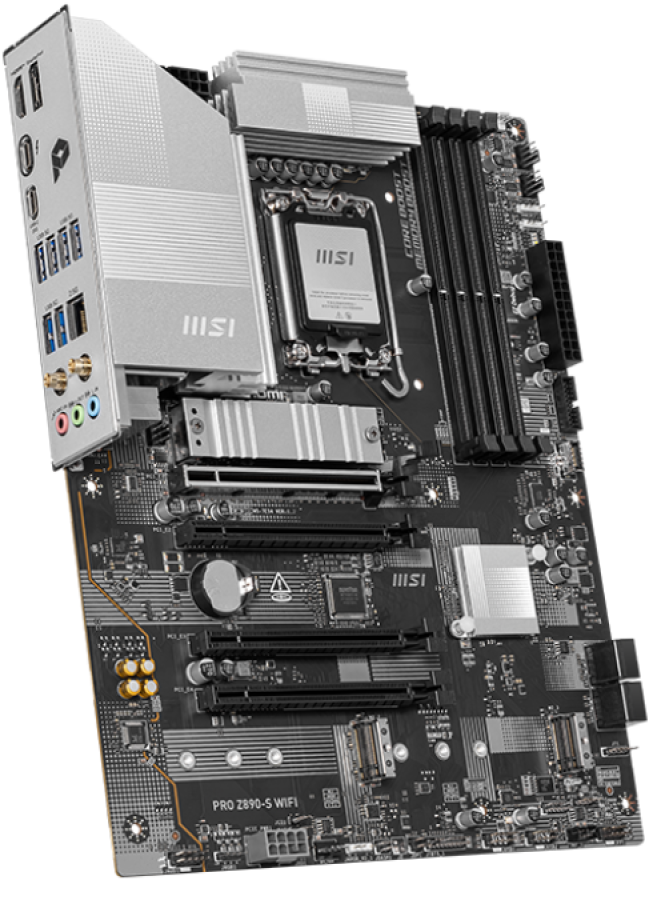

Article PRO Z890-S WIFI
Product code BD122439
Manufacturer MSI
Weight (kg)
Bar codes
4711377269995
All parameters
DETAILS
Chipset
Intel Z890
Form factor
ATX
PROCESSOR
Processor manufacturer
Intel
Socket
LGA 1851
Processor type
Intel Core Ultra Processors (Series 2)
RAM
DDR type
DDR5
DDR speed
8600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Number of slots
4
Max memory size
256 GB
AUDIO AND NETWORK DEVICES
Integrated audio card
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
LAN
Realtek® 8125D 2.5Gbps LAN
WiFi
Yes
EXPANSION CONNECTIONS
M.2 Connections
3
Internal connections
1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports

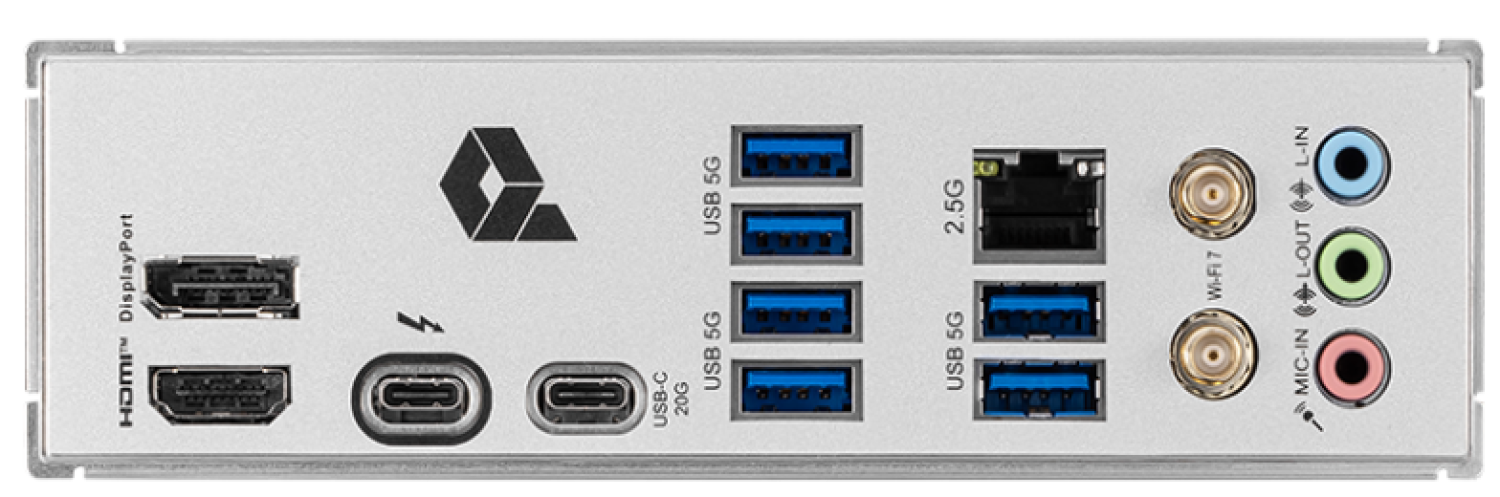

External connections
DisplayPort
USB 5Gbps Type-A
2.5G LAN
Wi-Fi / Bluetooth
Audio Connectors
HDMI™
Thunderbolt™ 4 40Gbps (Type-C)
USB 20Gbps Type-C
USB 5Gbps Type-A
