Product main parameters
Chipset AMD B550
Form factor ATX
Processor manufacturer AMD
Socket AM4
DDR type DDR4
Number of slots 4
M.2 Connections 2
Article ROGSTRIXB550-AGAMING
Product code BD69063
Manufacturer Asus
Weight (kg)
Bar codes
All parameters
DETAILS
Chipset
AMD B550
Form factor
ATX
PROCESSOR
Processor manufacturer
AMD
Socket
AM4
Processor type
MD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
RAM
DDR type
DDR4
DDR speed
3200 MHz
4600 MHz (O.C.)
Number of slots
4
Max memory size
128 GB
AUDIO AND NETWORK DEVICES
Integrated audio card
LAN
WiFi
No
EXPANSION CONNECTIONS
M.2 Connections
2
Internal connections
1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x Thunderbolt header(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x AAFP connector
2 x Aura RGB Strip Header(s)
1 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
6 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x System panel(s)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)

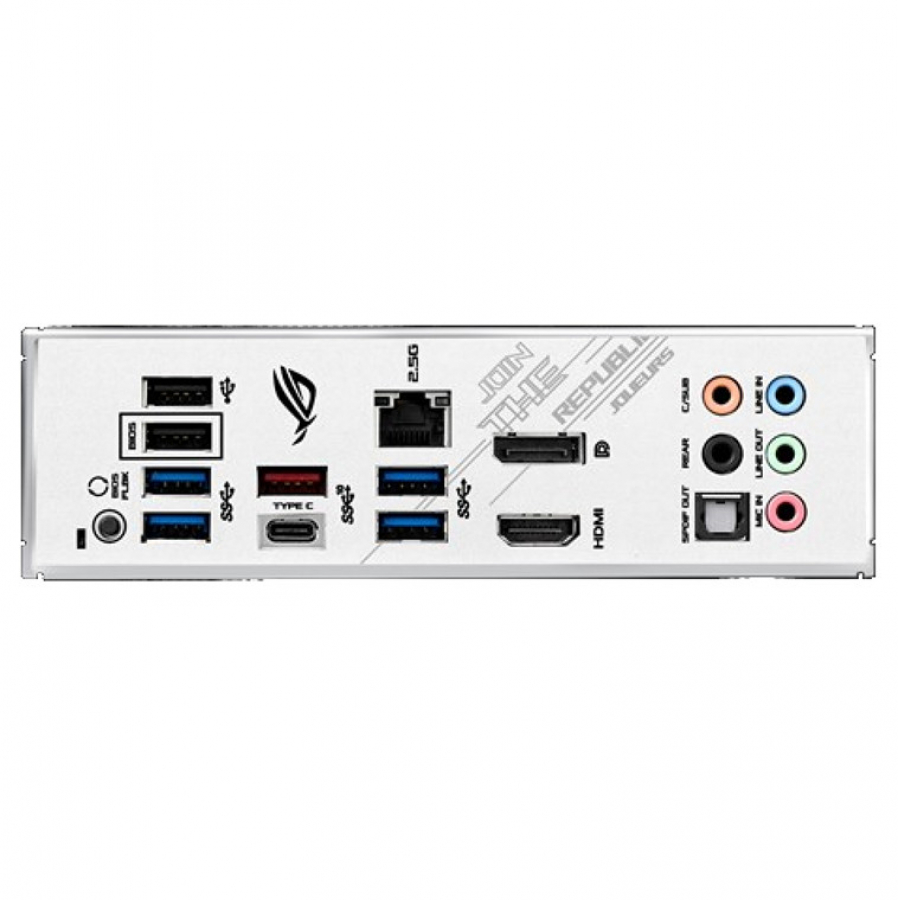

External connections
1 x BIOS FlashBack™ Button(s)
2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
1 x Intel® I225-V 2.5Gb Ethernet
4 x USB 3.2 Gen 1
1 x DisplayPort
1 x HDMI
2 x USB 2.0
1 x Optical S/PDIF out
5 x Gold-plated audio jacks
