Product main parameters
Chipset AMD A620
Form factor Micro ATX
Processor manufacturer AMD
Socket AM5
DDR type DDR5
Number of slots 2
M.2 Connections 1
Article A620AM-X WIFI
Product code BD127745
Manufacturer Asrock
Weight (kg)
Bar codes
4711581490826
All parameters
DETAILS
Chipset
AMD A620
Form factor
Micro ATX
PROCESSOR
Processor manufacturer
AMD
Socket
AM5
Processor type
Ryzen™ 9000, 8000 and 7000 Series Processors
RAM
DDR type
DDR5
DDR speed
un-buffered memory up to 8000+(OC)
Number of slots
2
Max memory size
128 GB
AUDIO AND NETWORK DEVICES
Integrated audio card
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
- 802.11ac Wi-Fi Module
- Supports IEEE 802.11a/b/g/n/ac
- Supports Dual-Band (2.4/5 GHz)
- Supports high speed wireless connections up to 433Mbps
- Supports Bluetooth 5.0
WiFi
Yes
EXPANSION CONNECTIONS
M.2 Connections
1
Internal connections
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
- 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen1 Header

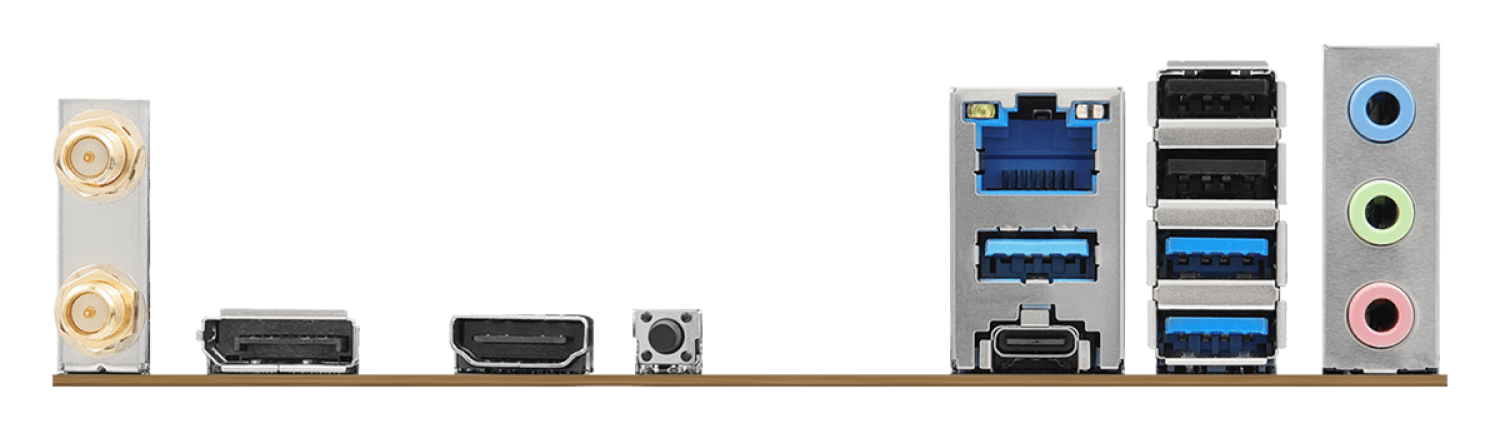

External connections
- 2 x Antenna Ports
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen1 Type-C Port
- 3 x USB 3.2 Gen1 Type-A Ports
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- HD Audio Jacks: Line in / Front Speaker / Microphone
