Product main parameters
Chipset Intel H810
Form factor Micro ATX
Processor manufacturer Intel
Socket LGA 1851
DDR type DDR5
Number of slots 2
M.2 Connections 1
Article H810M K
Product code BD127522
Manufacturer Gigabyte
Weight (kg)
Bar codes
4719331868697
All parameters
DETAILS
Chipset
Intel H810
Form factor
Micro ATX
PROCESSOR
Processor manufacturer
Intel
Socket
LGA 1851
Processor type
Support for Intel® Core™ Ultra Processors
RAM
DDR type
DDR5
DDR speed
Support for DDR5 6400/5600 MT/s memory modules
Number of slots
2
Max memory size
128 GB
AUDIO AND NETWORK DEVICES
Integrated audio card
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
WiFi
No
EXPANSION CONNECTIONS
M.2 Connections
1
Internal connections
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper

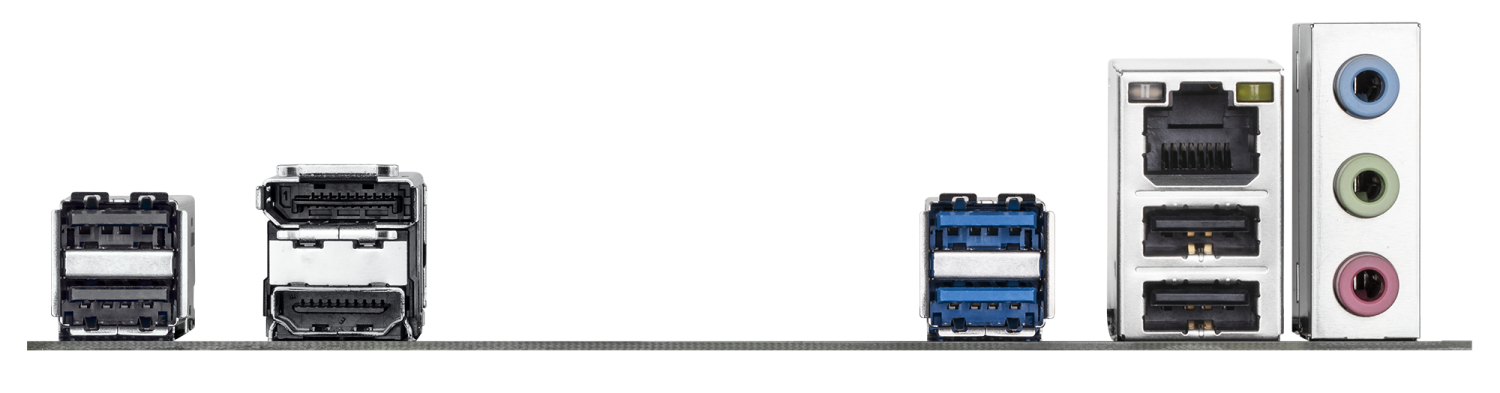

External connections
1 x DisplayPort (Note)
1 x HDMI port (Note)
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
