Product main parameters
Chipset AMD B450
Form factor Micro ATX
Processor manufacturer AMD
Socket AM4
DDR type DDR4
Number of slots 4
M.2 Connections 1
Article 90MB1620-M0EAY0
Product code BD66465
Manufacturer Asus
Weight (kg)
Bar codes
4718017927185
All parameters
DETAILS
Chipset
AMD B450
Form factor
Micro ATX
PROCESSOR
Processor manufacturer
AMD
Socket
AM4
Processor type
3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
RAM
DDR type
DDR4
DDR speed
2666 mHz
4400 mHz OC
Number of slots
4
Max memory size
128 GB
AUDIO AND NETWORK DEVICES
Integrated audio card
Realtek ALC887/8977.1 Surround Sound High Definition Audio CODEC
- Jack-detection
- Multi-streaming
- Front Panel Jack-retasking
- Up to 24-Bit/192kHz playback
- Audio Shielding
- Dedicated audio PCB layers
- Audio Cover
- Premium Japanese audio capacitors
- Exclusive DTS Custom for GAMING Headsets
LAN
Realtek RTL8111H 1Gb Ethernet
TUF LANGuard
WiFi
No
EXPANSION CONNECTIONS
M.2 Connections
1
Internal connections
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x Aura RGB Strip Header
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x SPI TPM header
6 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Speaker connector

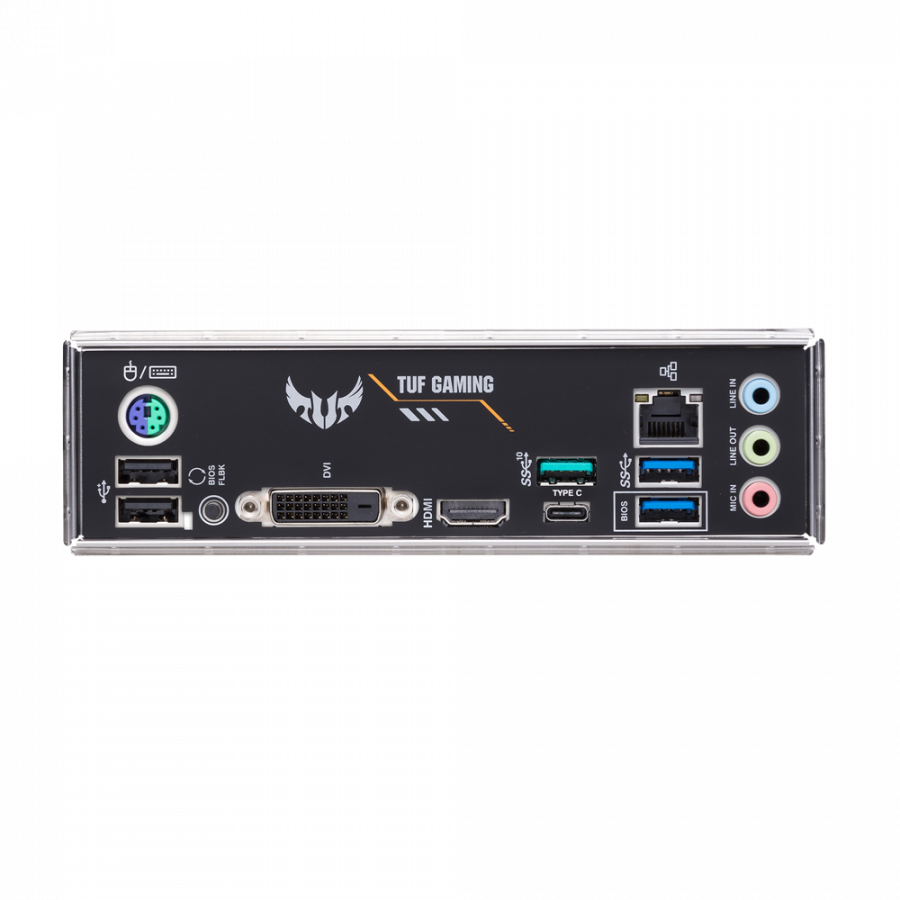

External connections
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.2 Gen 2 (teal blue)Type-A,
2 x USB 3.2 Gen 1 (blue) Type-A
1 x USB 3.2 Gen 1 (black) Type-C
2 x USB 2.0
3 x Audio jack(s)
1 x BIOS FlashBack™ Button(s)
