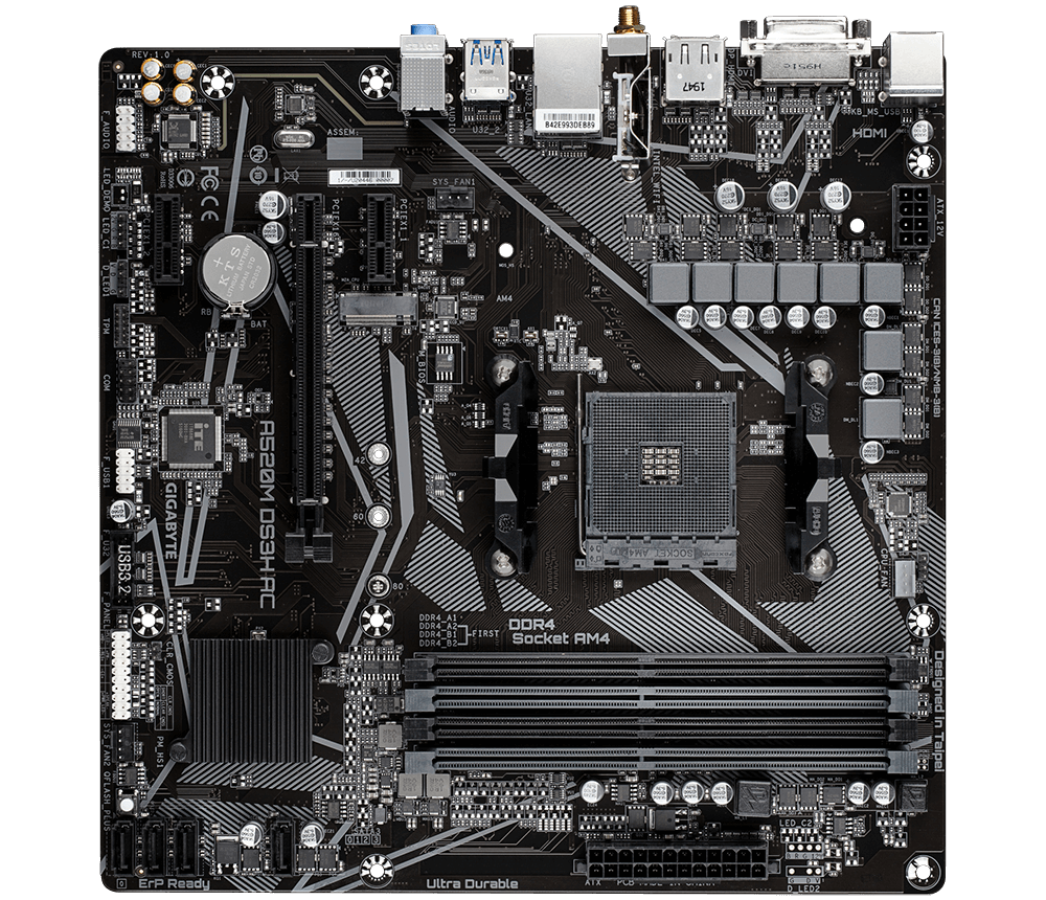

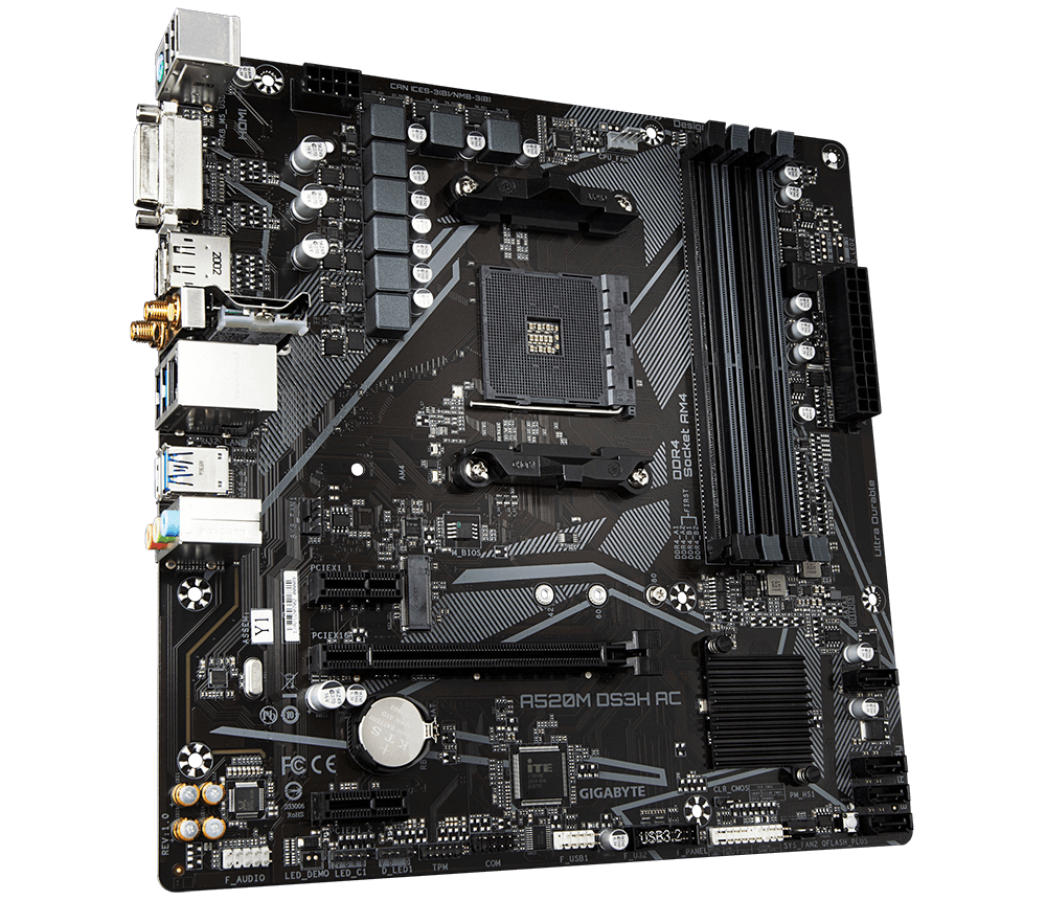

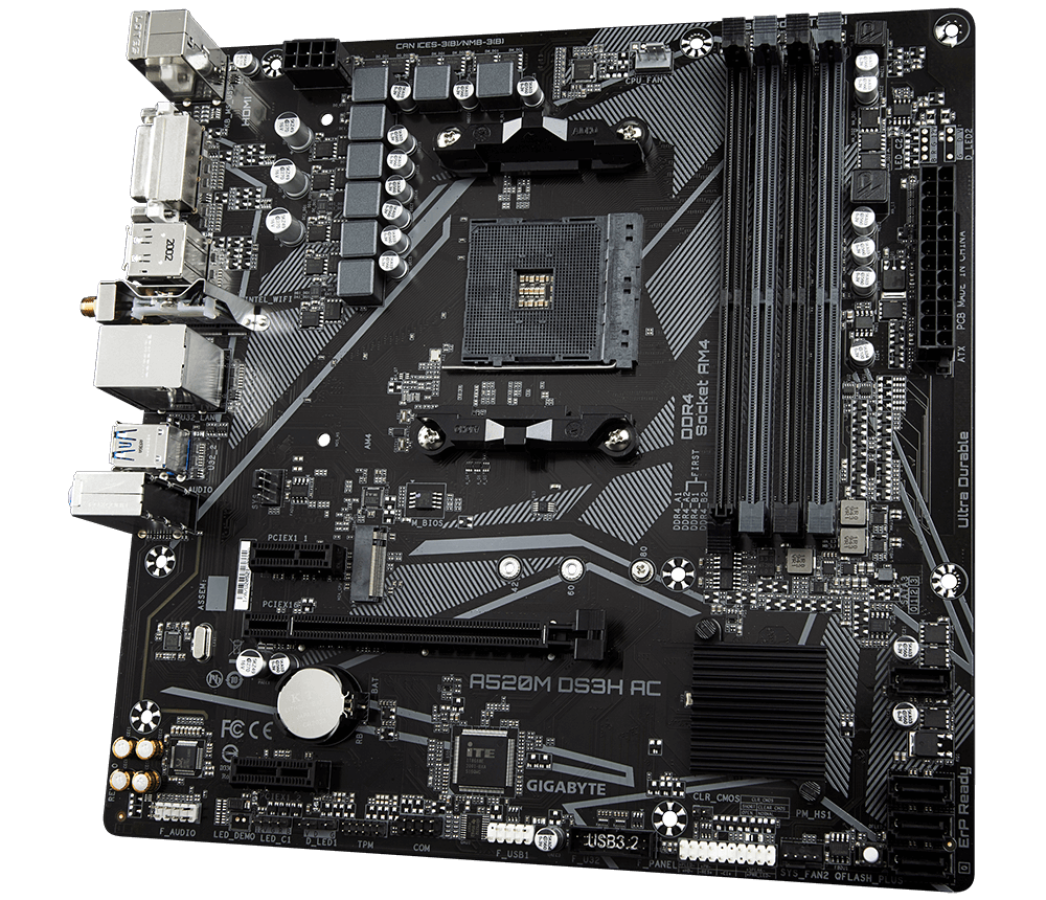

Motherboard Gigabyte A520M DS3H AC

AMD A520

Micro ATX

AMD

AM4

AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors

DDR4

DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

4

128 GB

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Intel® Dual Band Wireless-AC 3168 (For PCB rev. 1.0, 1.2, 1.3)
WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 4.2
Support for 11ac wireless standard
Intel® Wireless-AC 9260 (For PCB rev. 1.1)
WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.1
Support for 11ac 160MHz wireless standard
AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE) (For PCB rev. 1.4)
WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.0
Support for 11ac wireless standard

Yes

1

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button

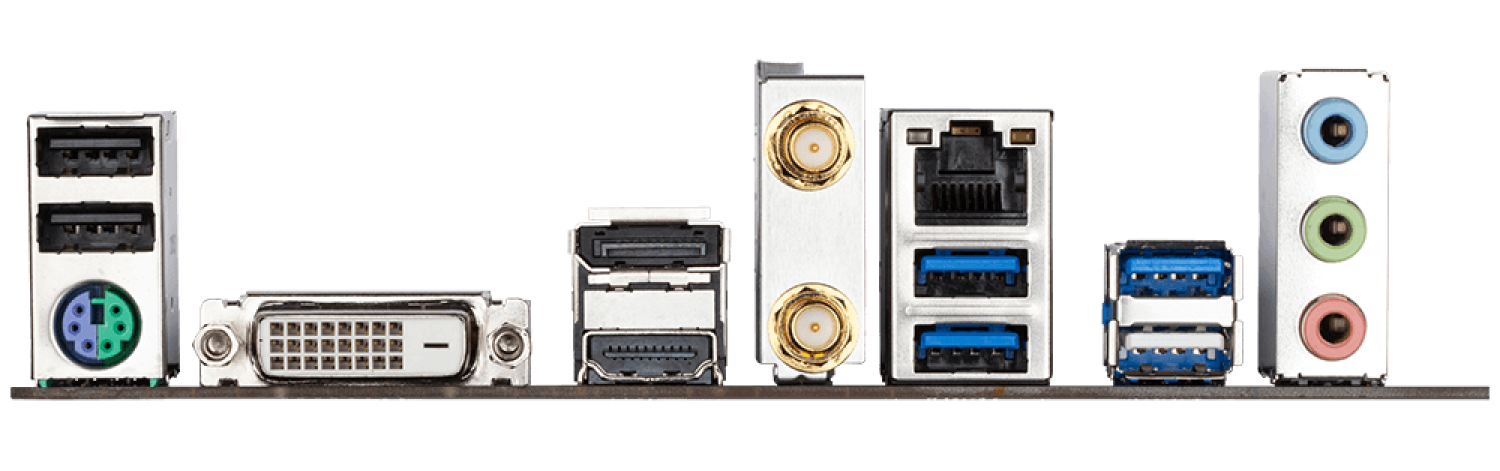

1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x DisplayPort
1 x HDMI port
2 x SMA antenna connectors (1T1R)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

2 years
