PC components > Motherboards

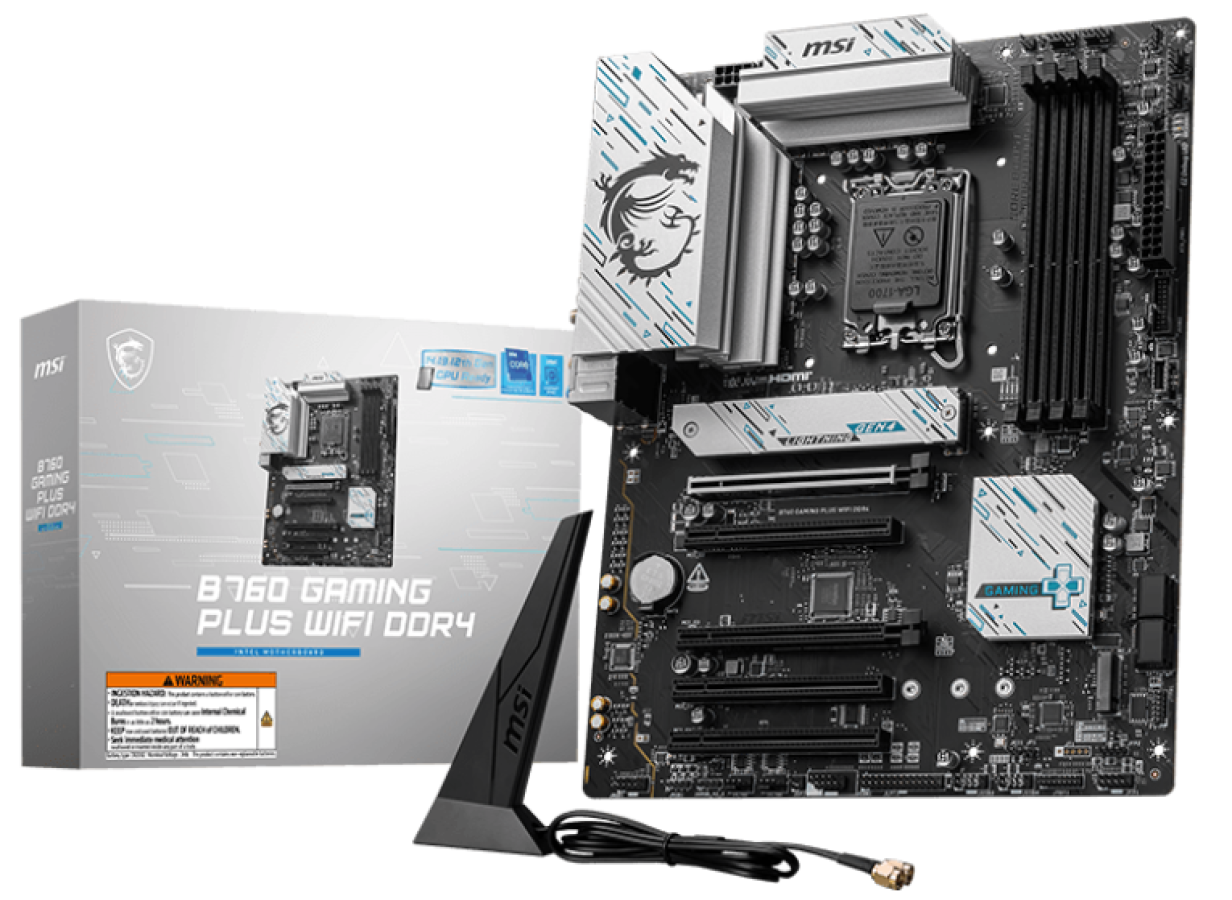

Motherboard MSI B760 GAMING PLUS WIFI DDR4 (B760 GAMING PLUS WIFI DDR4)

Image 1

Compare

BD122582

Motherboard MSI B760 GAMING PLUS WIFI DDR4

137.95 €

Go to cart Add to cart

Availability in stores

First contribution

Term

Monthly payment

Total financing costs

Total overpayment

12.65 €

151.75 €

13.80 €

APR:

19.53%

, Interest rate:

0.00%

, Processing fee:

10.00%

. The calculation of the leasing calculator is informative and may vary depending on the leasing company interest rate changes at the time of the request.
We remind you - borrow responsibly!

Parameters

Description

Downloads

Related products

Product main parameters

Chipset Intel B760

Form factor ATX

Processor manufacturer Intel

Socket LGA 1700

DDR type DDR4

Number of slots 4

M.2 Connections 2

Article B760 GAMING PLUS WIFI DDR4

Product code BD122582

Manufacturer MSI

Weight (kg)

Bar codes

4711377247900

All parameters

DETAILS

Chipset

Intel B760

Form factor

ATX

PROCESSOR

Processor manufacturer

Intel

Socket

LGA 1700

Processor type

Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

RAM

DDR type

DDR4

DDR speed

5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)

Number of slots

Max memory size

128 GB

AUDIO AND NETWORK DEVICES

Integrated audio card

Realtek ALC897 Codec
7.1-Channel High Definition Audio

LAN

Realtek RTL8125BG 2.5G LAN

WiFi

Yes

EXPANSION CONNECTIONS

M.2 Connections

Internal connections

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports

External connections

Keyboard / Mouse
DisplayPort
2.5G LAN
USB 2.0
Wi-Fi / Bluetooth
Audio Connectors
USB 2.0
HDMI™
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-C)
S/PDIF-OUT

WARRANTY

Product warranty, years

2 years
