BD125139

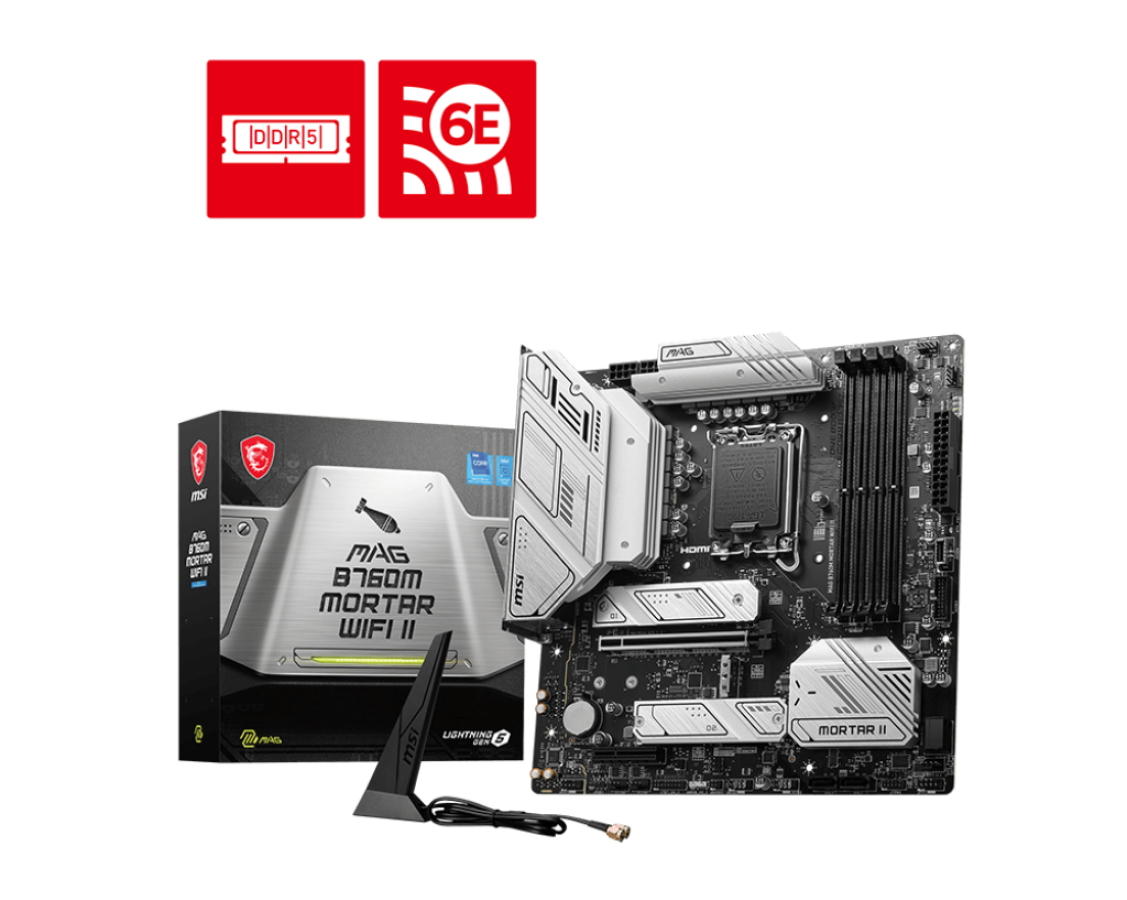

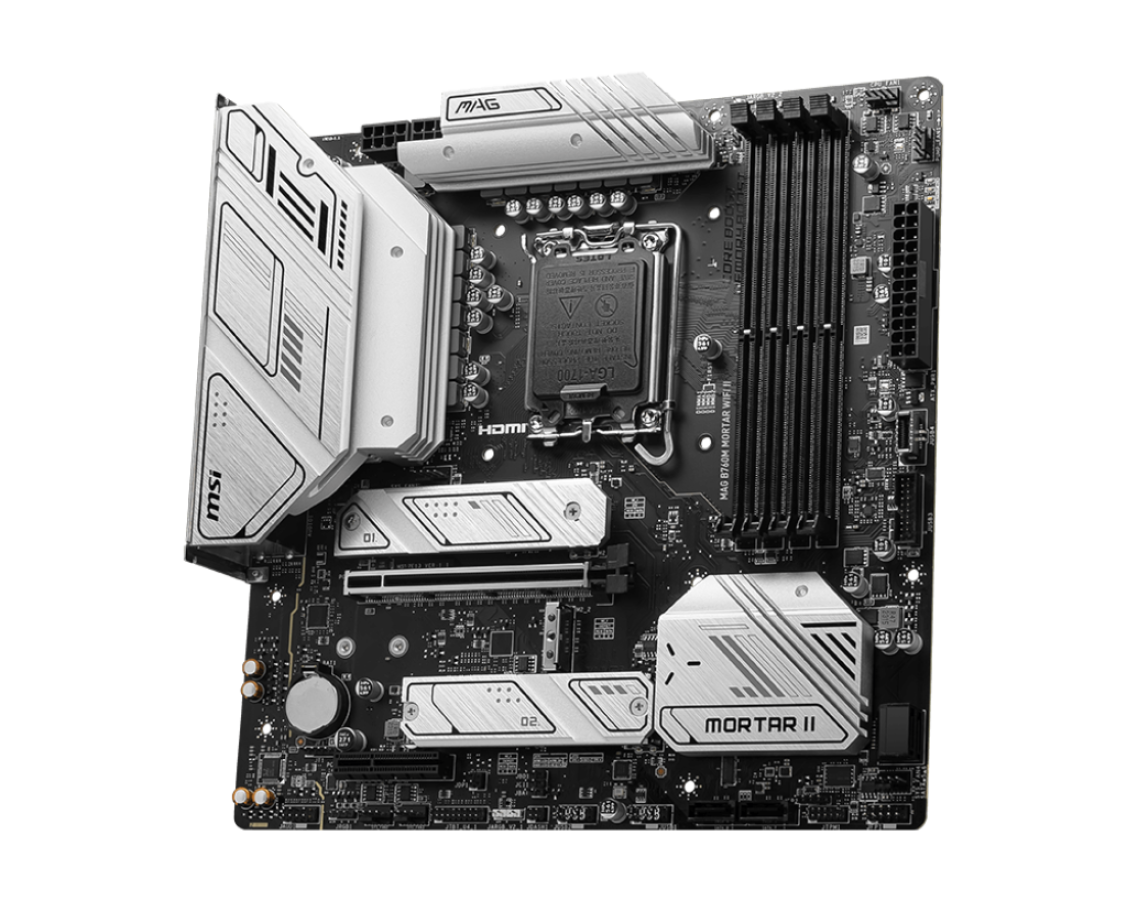

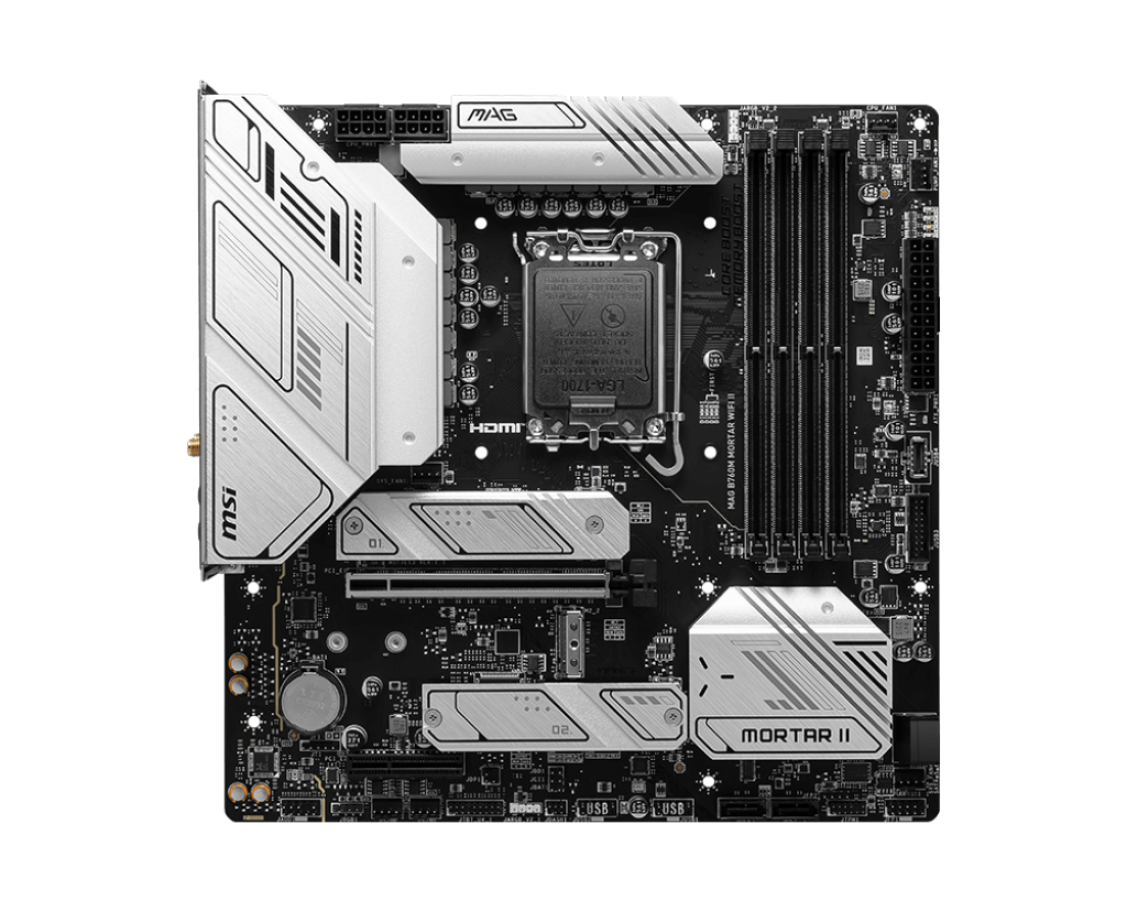

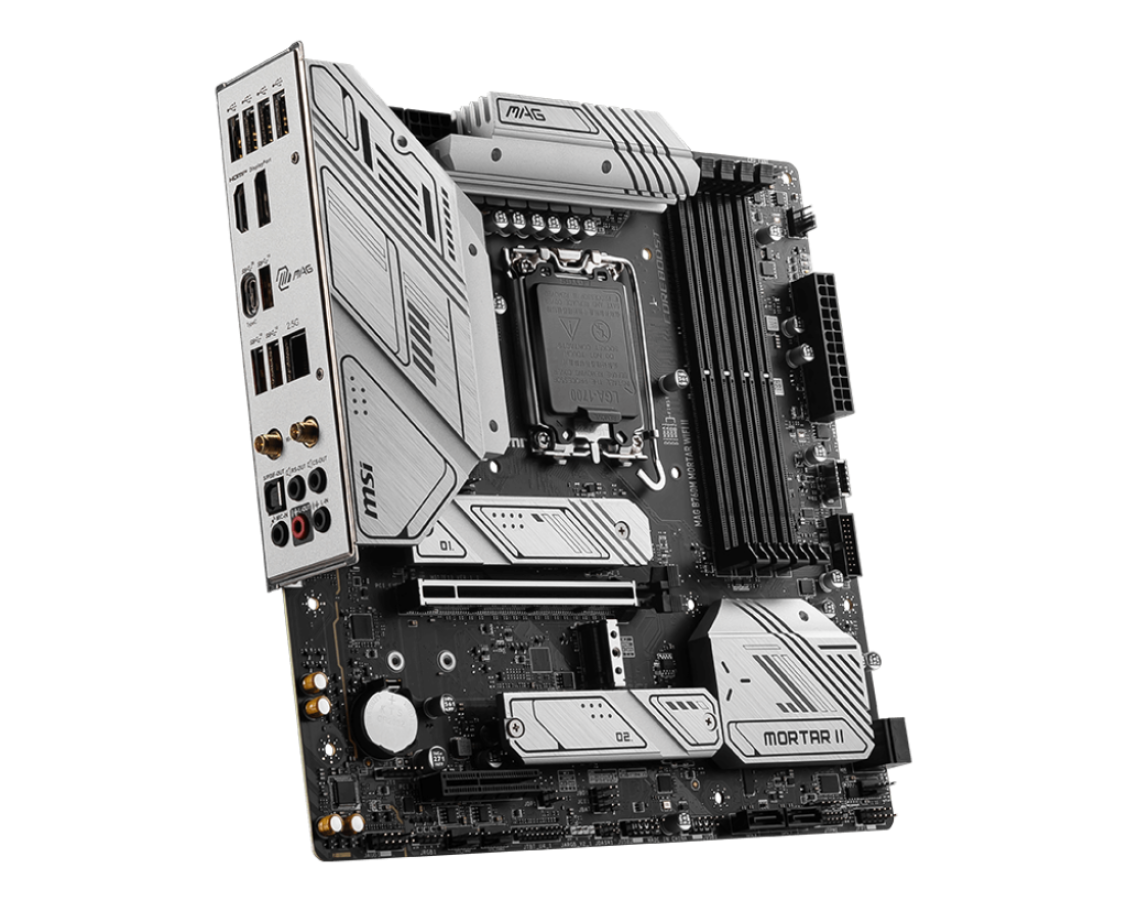

Motherboard MSI MAG B760M MORTAR WIFI II
233.95 €
First contribution
Term
Monthly payment
Total financing costs
Total overpayment
21.45
€
257.35
€
23.40
€
APR:
We remind you - borrow responsibly!
19.53%
,
Interest rate:0.00%
,
Processing fee:10.00%
.
The calculation of the leasing calculator is informative and may vary depending on the leasing company interest rate changes at the time of the request.
We remind you - borrow responsibly!
Parameters
Similar products
Related products
Product main parameters
Chipset Intel B760
Form factor Micro ATX
Processor manufacturer Intel
Socket LGA 1700
DDR type DDR5
Number of slots 4
M.2 Connections 3
Article 7E13-001R
Product code BD125139
Manufacturer MSI
Weight (kg)
Bar codes
4711377140119
All parameters
DETAILS
Chipset
Intel B760
Form factor
Micro ATX
PROCESSOR
Processor manufacturer
Intel
Socket
LGA 1700
Processor type
Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA1700
LGA1700
RAM
DDR type
DDR5
DDR speed
Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Number of slots
4
Max memory size
256 GB
AUDIO AND NETWORK DEVICES
Integrated audio card
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN
Realtek® 2.5Gbps LAN
Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA
Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA
WiFi
Yes
EXPANSION CONNECTIONS
M.2 Connections
3
Internal connections
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
1x USB4 card connector (JTBT_U4_1, supports RTD3)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
1x USB4 card connector (JTBT_U4_1, supports RTD3)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports

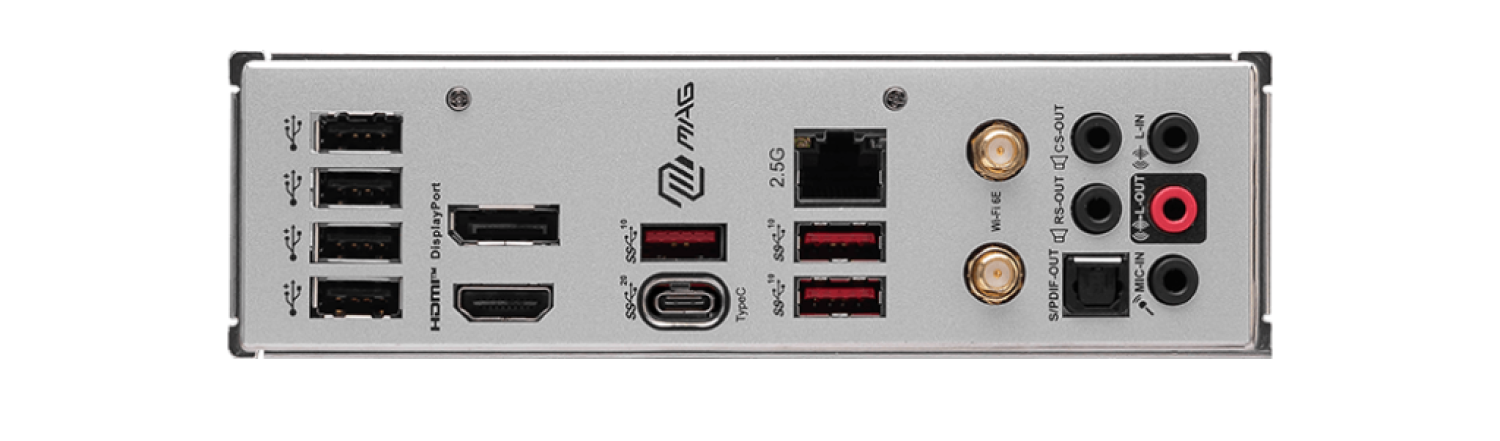

External connections
DisplayPort 1.4
USB 3.2 Gen 2 10Gbps Type-A
2.5G LAN Port
Wi-Fi / Bluetooth
HD Audio Connectors
USB 2.0
HDMI™ 2.1 Port
USB 3.2 Gen 2x2 20Gbps Type-C
USB 3.2 Gen 2 10Gbps Type-A
USB 3.2 Gen 2 10Gbps Type-A
2.5G LAN Port
Wi-Fi / Bluetooth
HD Audio Connectors
USB 2.0
HDMI™ 2.1 Port
USB 3.2 Gen 2x2 20Gbps Type-C
USB 3.2 Gen 2 10Gbps Type-A
WARRANTY
Product warranty, years
2 years
