Product main parameters
Chipset Intel Z890
Form factor ATX
Processor manufacturer Intel
Socket LGA 1851
DDR type DDR5
Number of slots 4
M.2 Connections 4
Article MAGZ890TOMAHAWKWIFI
Product code BD121356
Manufacturer MSI
Weight (kg)
Bar codes
4711377259712
All parameters
DETAILS
Chipset
Intel Z890
Form factor
ATX
PROCESSOR
Processor manufacturer
Intel
Socket
LGA 1851
Processor type
Supports Intel® Core™ Ultra Processors (Series 2)
RAM
DDR type
DDR5
DDR speed
Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Number of slots
4
Max memory size
256 GB
AUDIO AND NETWORK DEVICES
Integrated audio card
Realtek® ALC1220P Codec
LAN
Intel® Killer™ E5000 5Gbps LAN
WiFi
Yes
EXPANSION CONNECTIONS
M.2 Connections
4
Internal connections
1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports

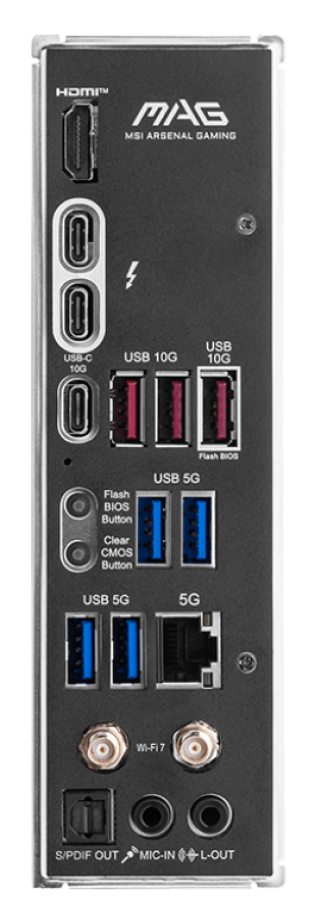

External connections
USB 10Gbps Type-A
USB 5Gbps Type-A
5G LAN
Wi-Fi / Bluetooth
Audio Connectors
HDMI™
Thunderbolt™ 4 40Gbps (Type-C)
USB 10Gbps Type-C
Flash BIOS Button
Clear CMOS Button
USB 5Gbps Type-A
S/PDIF-OUT
