Product main parameters
Chipset Intel Z890
Form factor ATX
Processor manufacturer Intel
Socket LGA 1851
DDR type DDR5
Number of slots 4
M.2 Connections 5
Article MPG Z890 EDGE TI WIFI
Product code BD121355
Manufacturer MSI
Weight (kg)
Bar codes
4711377260800
All parameters
DETAILS
Chipset
Intel Z890
Form factor
ATX
PROCESSOR
Processor manufacturer
Intel
Socket
LGA 1851
Processor type
Supports Intel® Core™ Ultra Processors (Series 2)
RAM
DDR type
DDR5
DDR speed
6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Number of slots
4
Max memory size
256 GB
AUDIO AND NETWORK DEVICES
Integrated audio card
Realtek® ALC1220P Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN
1x Intel® Killer™ E5000B 5G LAN
WiFi
Yes
EXPANSION CONNECTIONS
M.2 Connections
5
Internal connections
1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Thermal Sensor connectors(T_SEN)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports

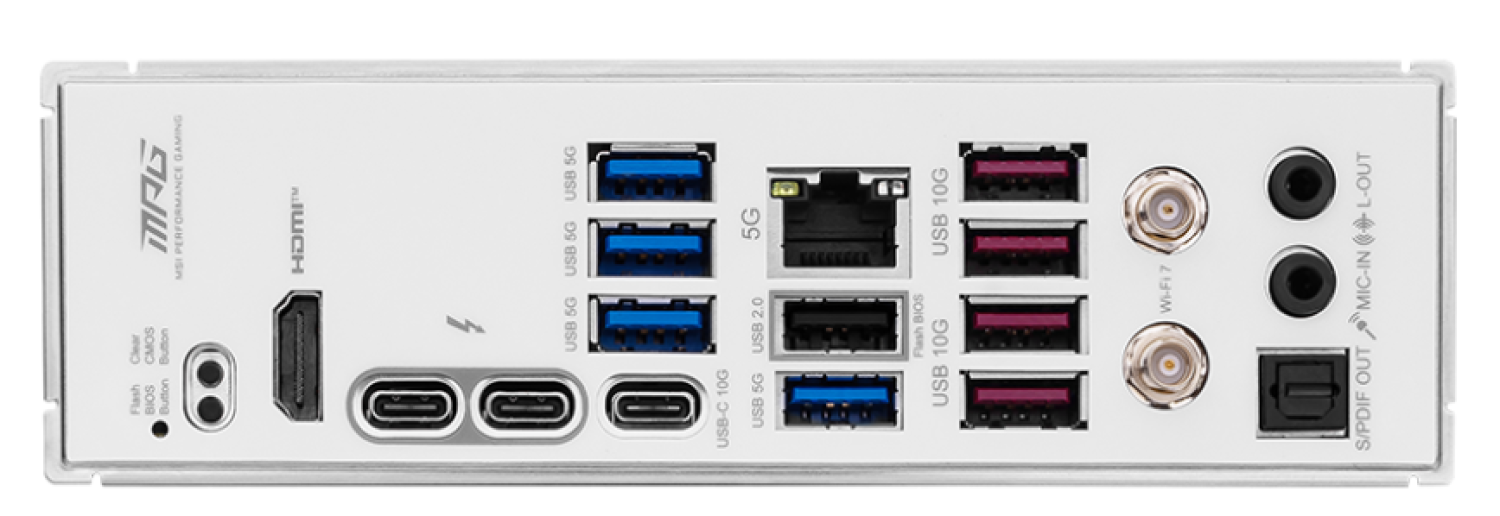

External connections
USB 5Gbps Type-A
5G LAN
USB 10Gbps Type-A
Wi-Fi / Bluetooth
Audio Connectors
Clear CMOS Button
Flash BIOS Button
HDMI™
Thunderbolt 4
USB 10Gbps Type-C
USB 2.0
Optical S/PDIF Out
