Product main parameters
Compatible manufacturers Lenovo
HDMI Yes
SD/MicroSD card reader No
LAN (RJ45) Yes
Article 40AU0065EU
Product code BD104247
Manufacturer Lenovo
Weight (kg)
Bar codes
193386926139 0193386926139
All parameters
BASIC PARAMETERS
Compatible manufacturers
Lenovo
Device connection interface
USB-C

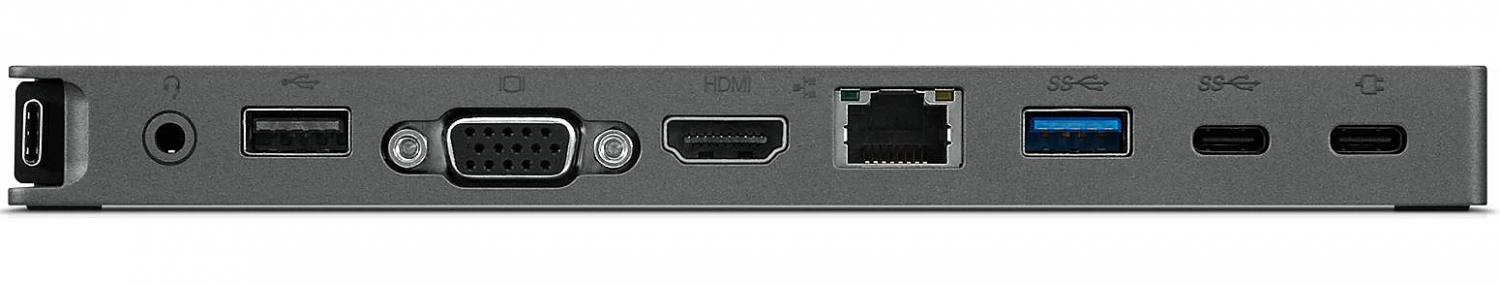

CONNECTIONS
HDMI
Yes
USB
1*USB-C 3.1 Gen1
1*USB-A 3.1 Gen1
1*USB2.0
USB Type C
2
SD/MicroSD card reader
No
LAN (RJ45)
Yes
Other connections
1*3.5 mm combo jack
1*HDMI2.0 (supports up to 4K@60Hz, HDR&HDCP2.2)
1*VGA port (supports up to 1080p@60Hz)
Only one external display can be connected to the dock at one time.
ADDITIONAL INFORMATION AND WARRANTY
Additional information
Lenovo USB-C & Thunderbolt Docks function with notebooks that support industry standard USB-C Alt-Mode or Thunderbolt protocols through their Type C port. Lenovo USB-C and Thunderbolt Docks support additional features, such as MAC address passthrough, WOL and mirrored power button, on most Lenovo ThinkPad notebooks, but such features may not be available on certain other Lenovo notebooks or non-Lenovo branded notebook systems.
Warranty
2 years

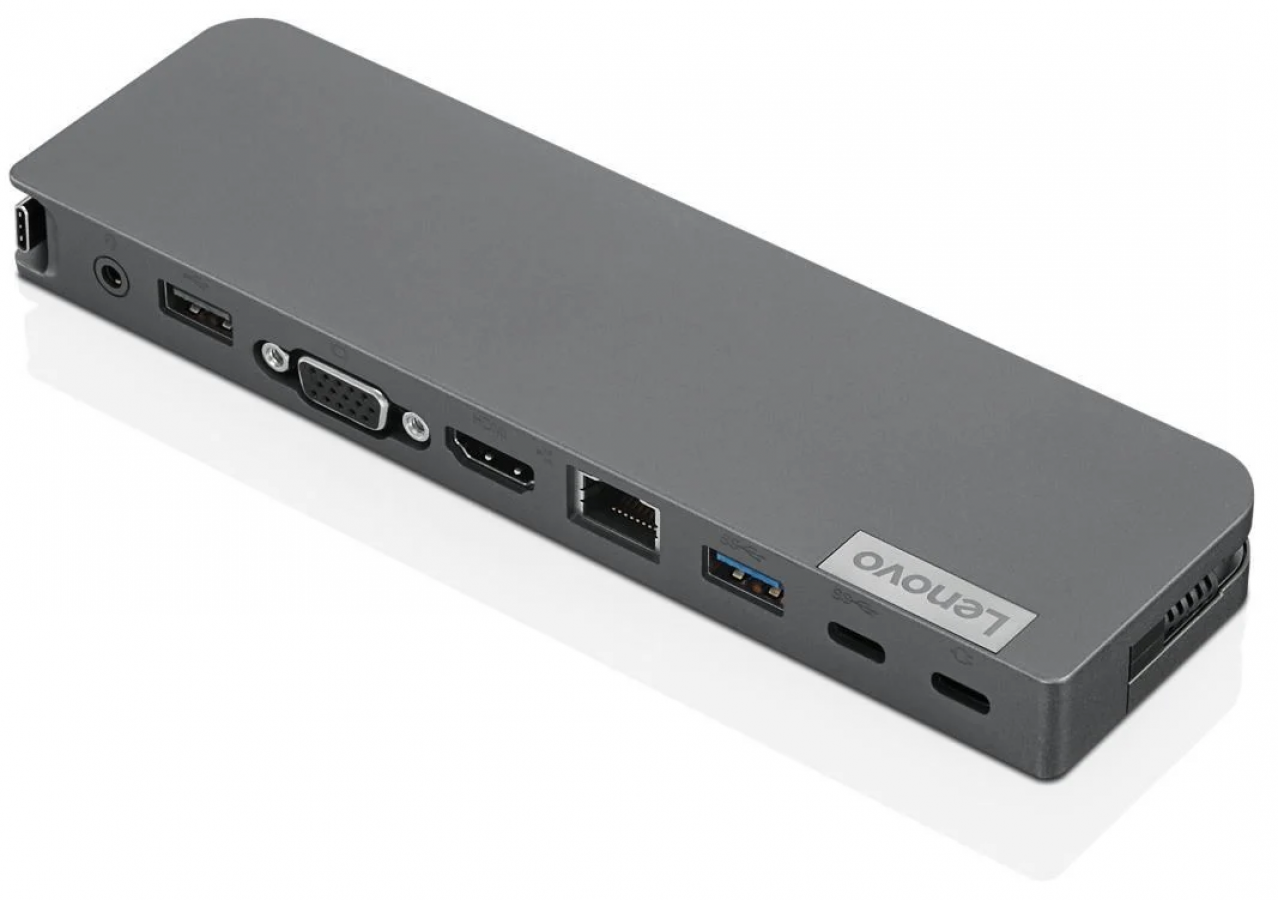

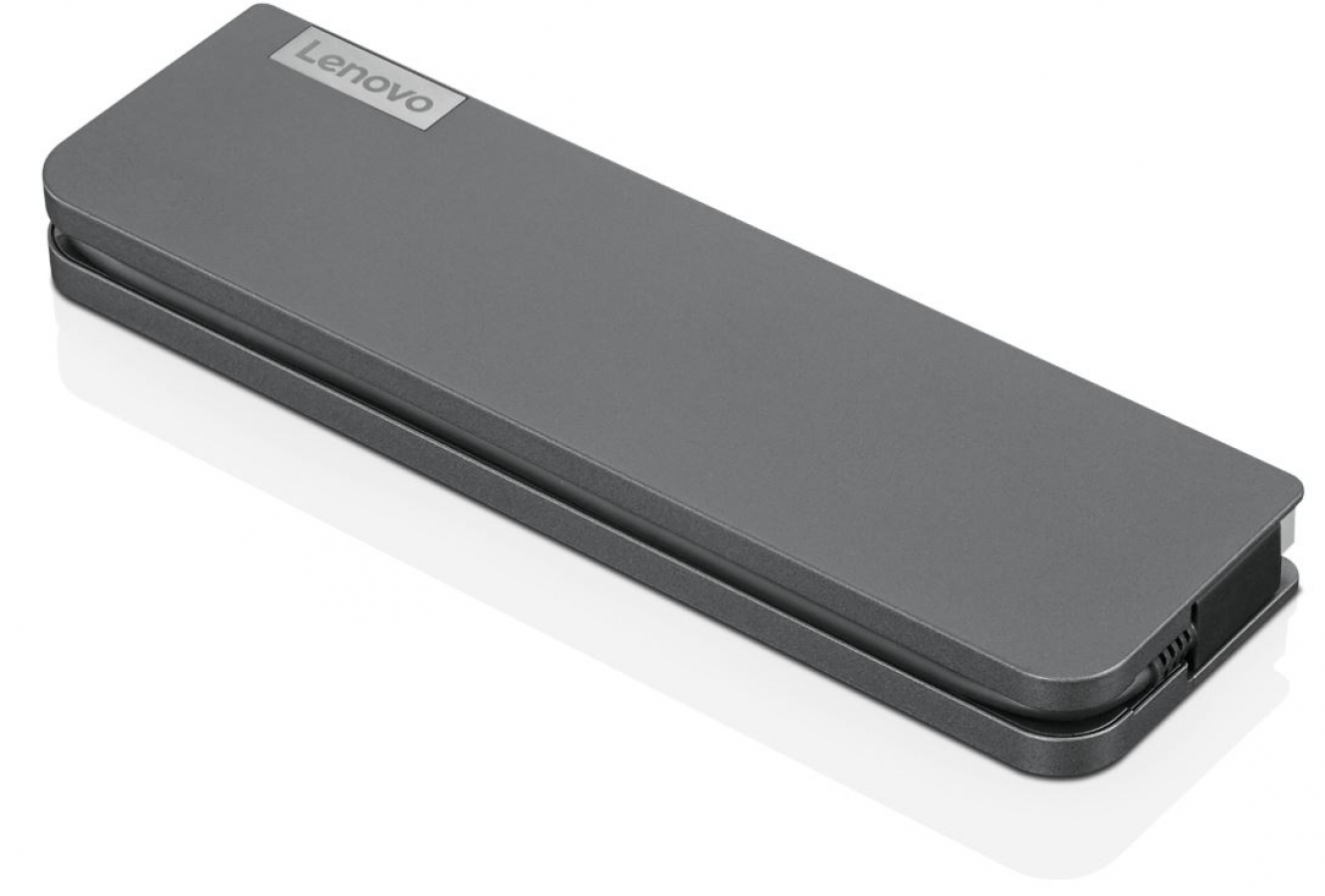

The Lenovo Mini USB-C Dock (40AU) lets you expand your options and add powerful capabilities with just a single USB-C connection. Charge any legacy device with USB-A ports and effortlessly add an extra 4K or HD display, enterprise networking, and an external 3.5mm combo audio jack. Depending on many factors such as the processing capability of peripheral devices, file attributes, and other factors related to system configuration and operating environments, the actual transfer rate using the various USB connectors on this device will vary and is typically slower than the data rates as defined by the respective USB specifications: - 5 Gbit/s for USB 3.1 Gen 1; 10 Gbit/s for USB 3.1 Gen 2 and 20 Gbit/s for USB 3.2.
Features include:
One Cable, Endless Capabilities: Connect to an external 4K or 1080P display* with HDMI or VGA, wired RJ45 network, two USB-A devices, and USB-C power pass-through – all via a single USB-C cable that disappears inside the minimalist design
Compact Design: Compatible with Lenovo branded USB-C notebooks thanks to easy, driverless plug-and-play. Power any notebook up to 45W with the included 65W USB-C power adaptor.;
Enterprise Networking and Security: The Lenovo USB-C Mini Dock provides secure enterprise network manageability such as PXE boot and Wake-On LAN. It also supports passing ThinkPad Mac through the dock for IT to identify the system in large networks accurately
