Axagon HUE-S2B USB3.0 charging hub

The four-port USB 3.1 hub easily connects up to four USB devices simultaneously to your
computer or smartphone.

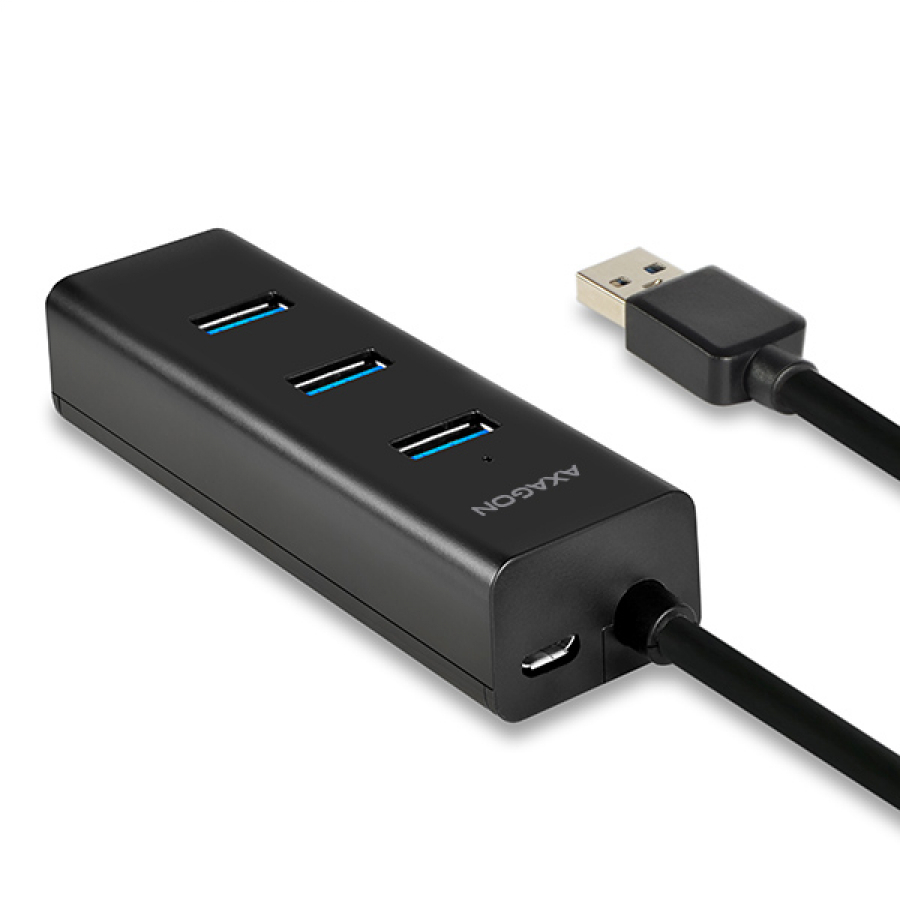

A great advantage is the possibility of external power supply from any mobile device charger
with a micro USB connector.
The unused charger thus makes this USB hub a fast-charging hub for free.

4 PORTS • USB 3.0 • micro USB POWER CONNECTOR

Mobile phones, tablets, power banks and other devices can be charged up to 2A (depends on
the charger used) in any hub port thanks to the USB Battery Charging 1.2 support.
It also allows charging of iPad tablets even without auxiliary power supply with approx. 1A
(iPad mostly cannot be charged directly from the USB 3.0 ports on the PC).
After turning off the connected PC or without being connected to the PC the hub works with
power supply via USB charger as a separate charging USB hub.

USB BATTERY CHARGING 1.2 • FAST CHARGING UP TO 2A

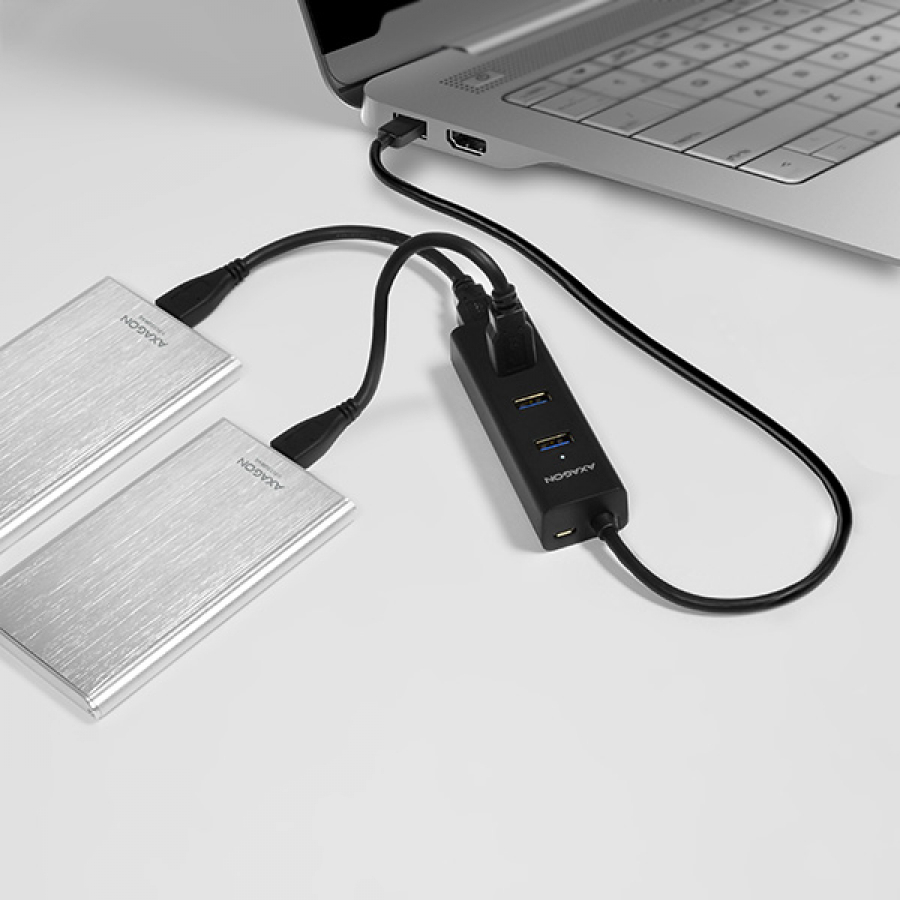

It can even handle permanent connection of several 2.5" external disks without external hub
power.
When external power supply is connected, you can also work with three external 2.5" magnetic
disks at one time.
However, we recommend that you connect max. 2 external 2.5" disks simultaneously for
reliable long-term hub operation.

2 HDDs & USB POWER • UP TO 3 HDDs & SELF POWER

The small lightweight four-port USB-C hub with an elegant, matte plastic body is truly
versatile.
Ideally, however, it will find use as a handy addition to new mobile devices, especially
ultrabooks and smartphones with modern USB-C port.
The unlosable permanently attached USB cable with a length of 30 cm is designed especially for
connecting to a laptop.

MINI & LIGHTWEIGHT • MATTE SURFACE • FIXED USB CABLE

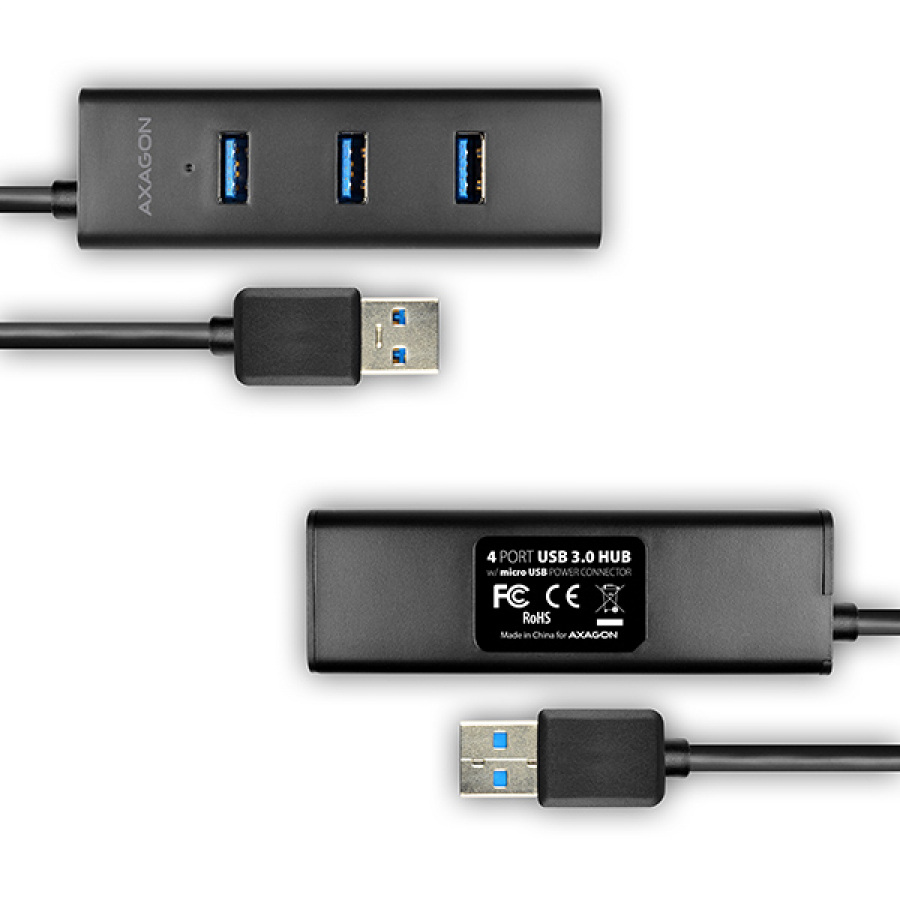

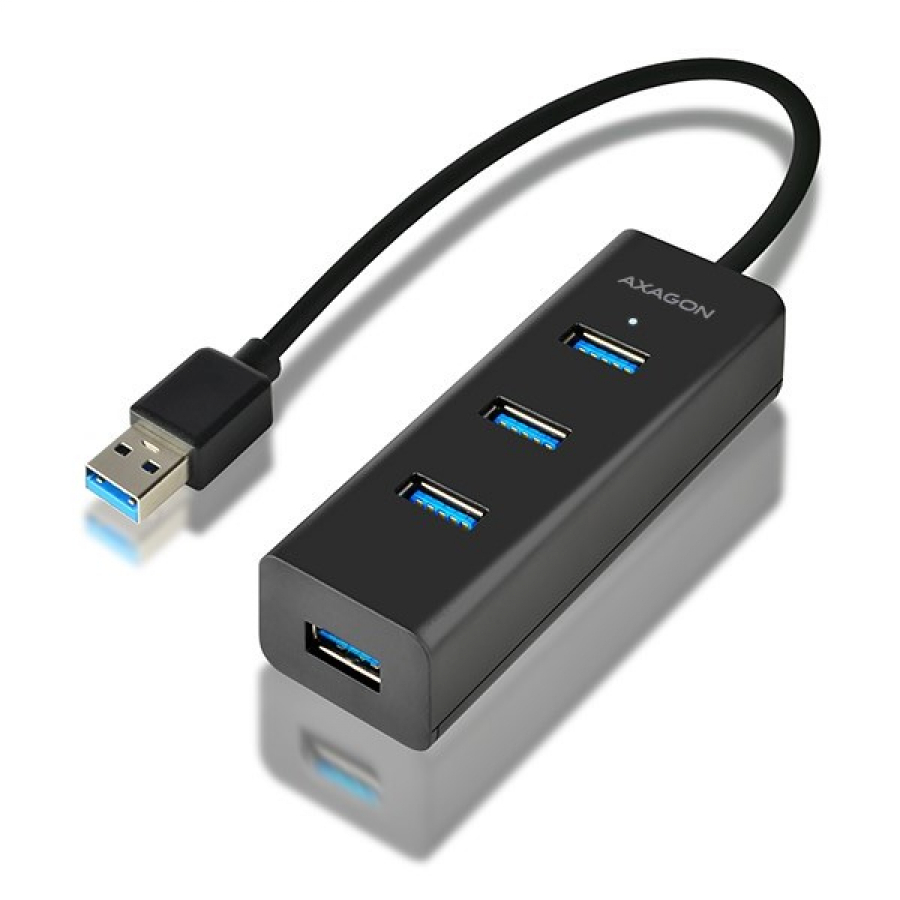

The four port AXAGON HUE-S2B USB 3.0 hub with optional external power and fast charging support on all ports.

A lightweight small hub with elegant, matte plastic body connects quickly and easily up to four USB devices to your PC at one time.

A great advantage is the possibility of external power supply from any mobile device charger with a micro USB connector. The unused charger thus makes this USB hub a fast-charging hub for free.

Mobile phones, tablets, power banks and other devices can be charged up to 2A (depends on the charger used) in any hub port thanks to the USB Battery Charging 1.2 support.

Supports charging of iPad tablets even without auxiliary power supply with approx. 1A (iPad mostly cannot be charged directly from the USB 3.0 ports on the PC).

It can even handle permanent connection of several external disks without external hub power. When external power supply is connected, you can even work with three external disks at one time.

The USB ports located across the hub body with sufficient spacing ensure seamless direct connection of large USB devices.

A permanently attached USB cable with a sufficient length of 30 cm is ideal for use with laptops.

It can also work as a separate charging hub and charge the USB devices from the power adapter even when the PC is turned off or disconnected.

Features:
• 4 downstream USB 3.0 ports with enough space around the connectors.

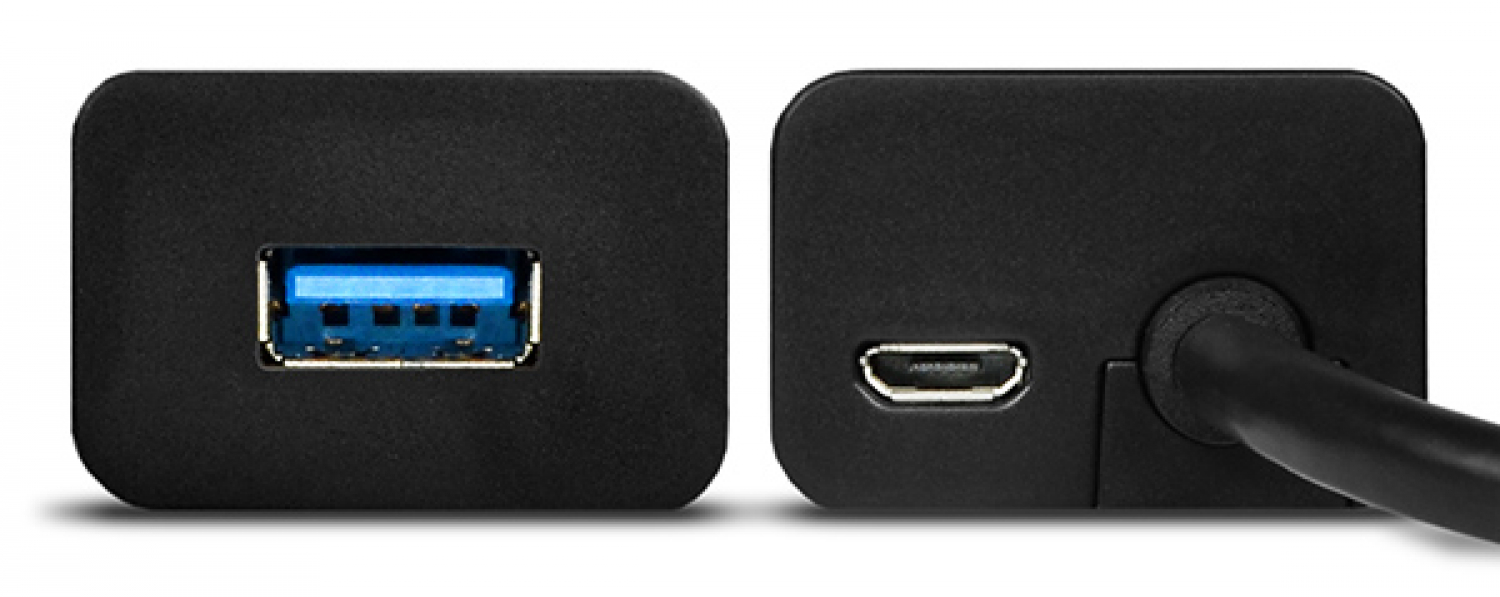

• an upstream USB 3.0 port with USB  Type A male connector on a 30 cm long permanently attached cable.
• Compatible with USB 3.0 and backward compatible with USB 2.0 and USB 1.1.
• Supports transmission rates 1.5 / 12 / 480 / 5000 Mb/s (low / full / high / super speed).
• Supports USB Battery Charging v 1.2 specification.
• Each hub port can be used to charge up to 2 A (with an external USB charger - not included).
• Possibility to connect your device while running thanks to the Hot Plug support.
• Full Plug and Play support.
• LED indication of hub connection to power supply.
• Current overload detection and protection.
• Hub dimensions 96 x 32 x 22 mm.
• Hub weight 48 g (incl. cable).

The hub power mode via USB cable (bus power):
• The USB bus power is sufficient to connect the USB device with a low power consumption (mouse, keyboard, card reader, flash disk, etc.) or own power supply (printer, scanner, 3.5" external disk) to all four ports.
• In this power mode, the USB hub is also able to cope with up to two magnetic 2.5" external disks simultaneously.
• Charging of mobile devices (including iPads) is also possible in this power mode, however, the charging current is only 0.9 A, in some cases 1 A (depending on the computer).

The hub power mode via USB charger - not included (self power):
• Any mobile device charger with micro USB connector (recommended output current of the charger 2A) can be used.
• In this power mode, the USB hub is able to cope with three magnetic 2.5" external disks. However, we recommend that you connect max. two external 2.5" disks simultaneously for reliable long-term hub operation.
• Fast charging of mobile devices (including iPads) up to 2A in each of the hub ports. The total current supplied by the hub during charging is limited by the output current of the external power adapter.

Independent charging hub mode without being connected to the PC (charging hub):
• After disconnecting the connected PC or without being connected to the PC the hub works with power supply via USB charger as a separate charging USB hub.
• Fast charging of mobile devices (including iPads) up to 2A in each of the hub ports. The total current supplied by the hub during charging is limited by the output current of the external power adapter.

OS support:
• MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and  later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported are all 32- and 64-bit Windows OS versions), Mac OS X 10.4.x and higher, Linux with kernel 2.6.x and above.
• Note: Drivers are included with supported operating systems and are installed completely automatically. No other drivers need to be installed and are not even available.
