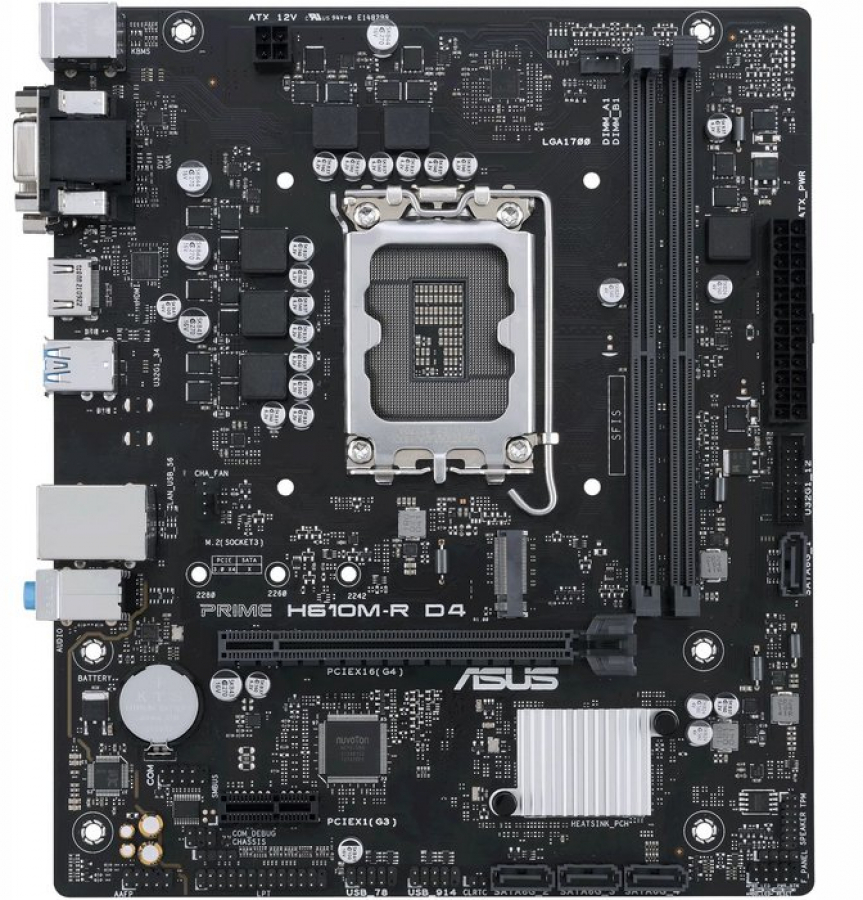

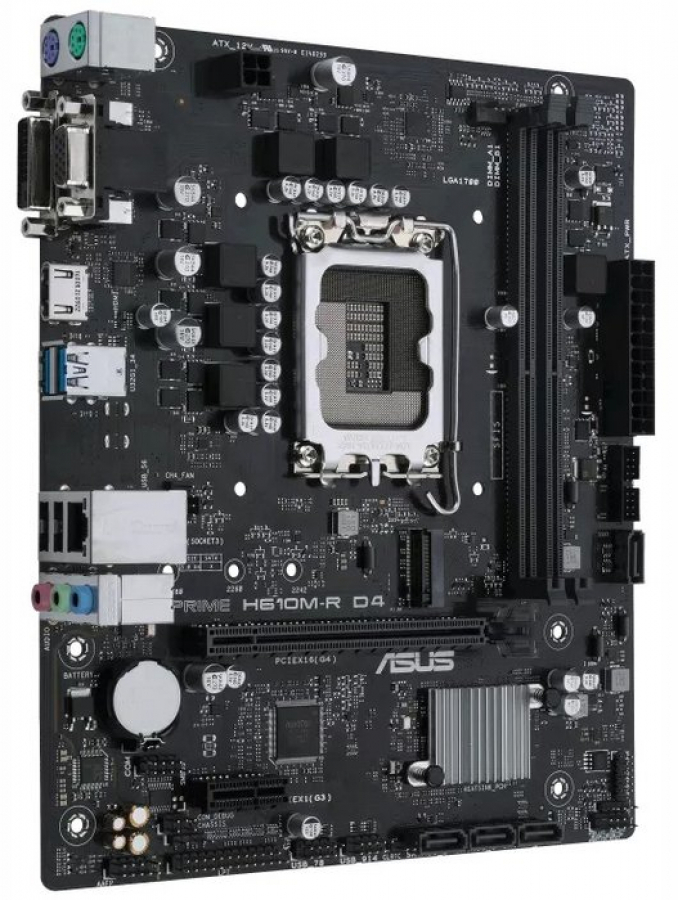

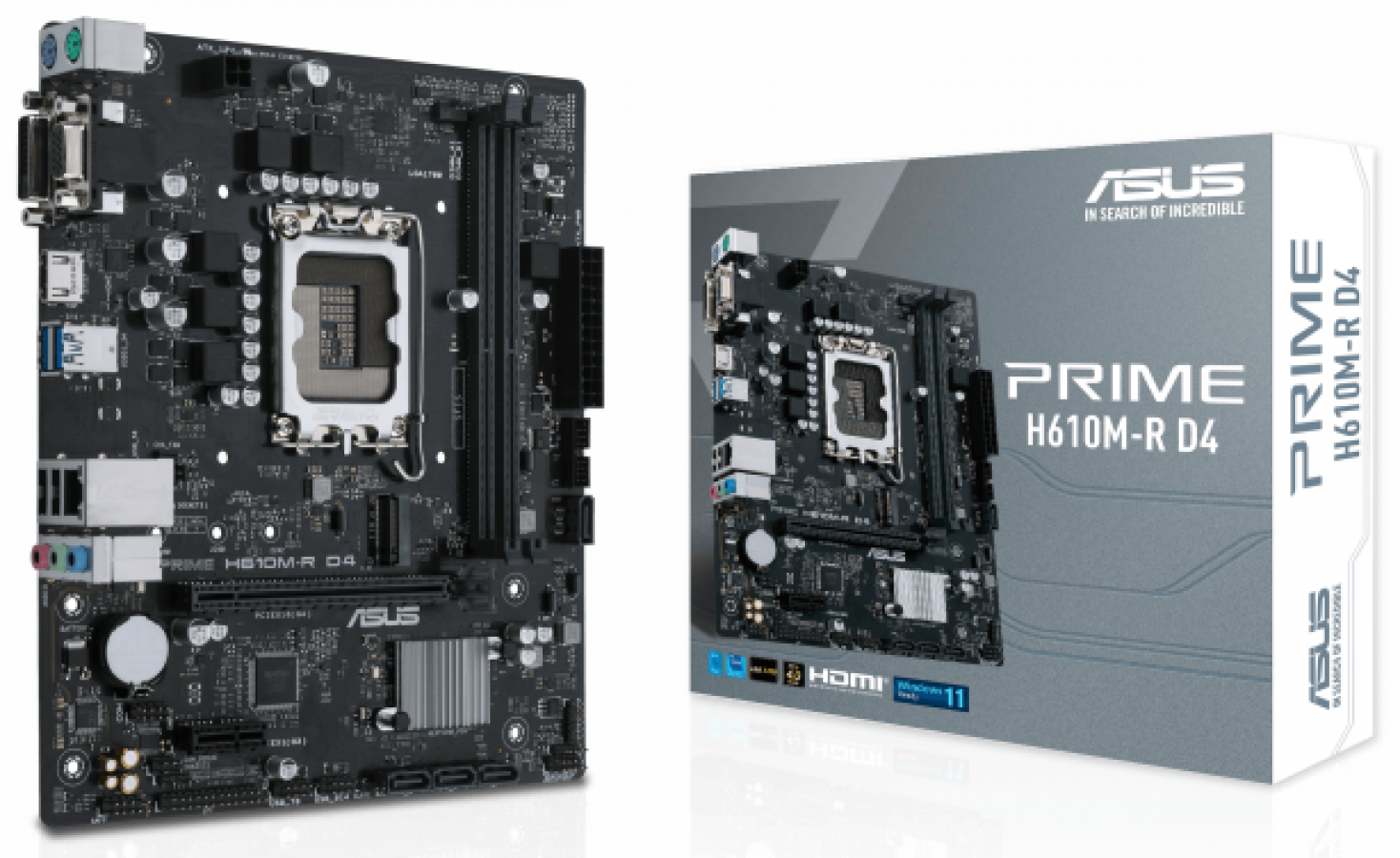

Pamatplate Asus Prime H610M-R D4-SI

Intel H610

Micro ATX

Intel

LGA 1700

12th Gen Intel Celeron Processors, 12th Gen Intel Pentium Gold Processors, 12th Gen Intel Pentium Processors, 12th Gen Intel Core Processors

DDR4

3200, 2800, 3000, 2666, 2400, 2133, 2933

2

64 GB

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

1 x Realtek 1Gb Ethernet

Nav

1

Internal I/O - 12V power connector - Y
Internal I/O - Audio connector - Y
Internal I/O - CPU fan connector - Y
Internal I/O - Front panel audio connector - Y
Internal I/O - Chassis intrusion connector - Y
Internal I/O > Number of SATA connectors - 4
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Internal I/O - ATX Power connector (24-pin) - Y
Internal I/O - Number of COM connectors - 1
Internal I/O - TPM connector - Y
Internal I/O - Number of chassis fan connectors - 1

Rear panel I/O ports - Headphone outputs - 3
Rear panel I/O ports - DVI-D ports quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Microphone in - Y
Rear panel I/O ports - PS/2 ports quantity - 2
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB connector type - USB Type-A
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1

2 gadi
