Preces galvenie parametri
Mikroshēmu tips | chipset Intel B760
Plates formfaktors ATX
Procesora ražotājs Intel
Ligzda LGA 1700
DDR tips DDR4
Atmiņas sloti 4
M.2 Pieslēgumi 3
Artikuls PROARTB760-CREATOR
Preces kods BD107699
Ražotājs Asus
Svars (kg)
Svītru kodi
4711387179727
Visi parametri
PAMATPARAMETRI
Mikroshēmu tips | chipset
Intel B760
Plates formfaktors
ATX
PROCESORS
Procesora ražotājs
Intel
Ligzda
LGA 1700
Procesoru tipi/arhitektūras
13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 10 nm CPU
OPERATĪVĀ ATMIŅA
DDR tips
DDR4
DDR ātrums
4800
Atmiņas sloti
4
Max atmiņas apjoms
128 GB
AUDIO UN TĪKLA IEKĀRTAS
Integrēta audio karte
LAN
WiFi
Nav
IEKŠĒJIE UN ĀRĒJIE PIESLĒGUMI
M.2 Pieslēgumi
3
Iekšējie pieslēgumi
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x SPI TPM header (14-1pin)
1 x 20-5 pin System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ header

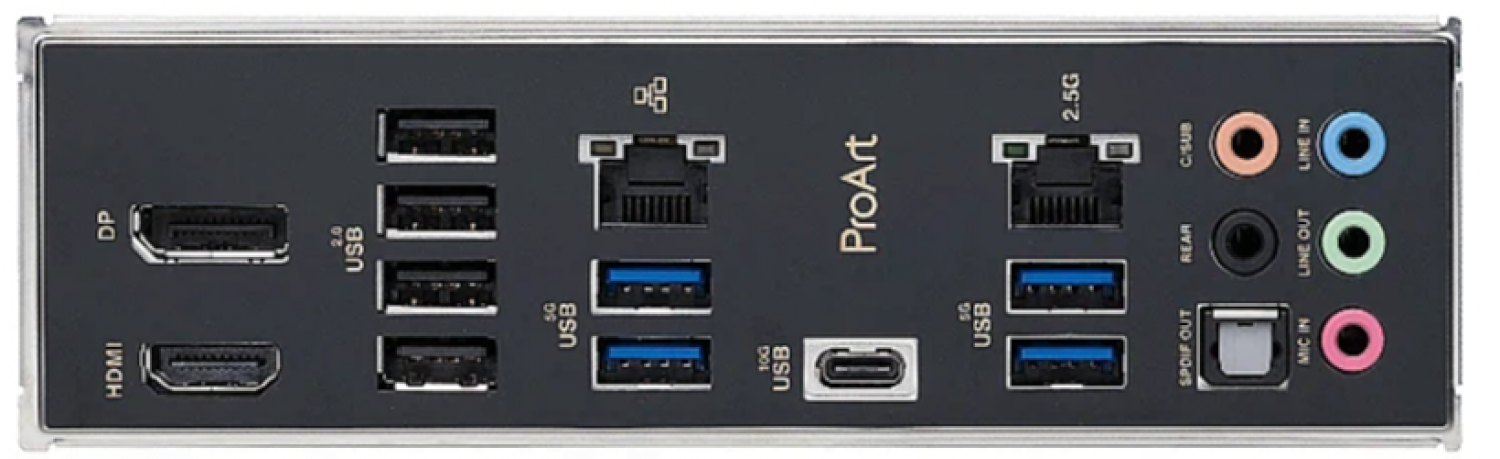

Ārējie pieslēgumi
1 x USB 3.2 Gen 2 port (1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Realtek 2.5Gb Ethernet port
1 x Intel® 1Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
