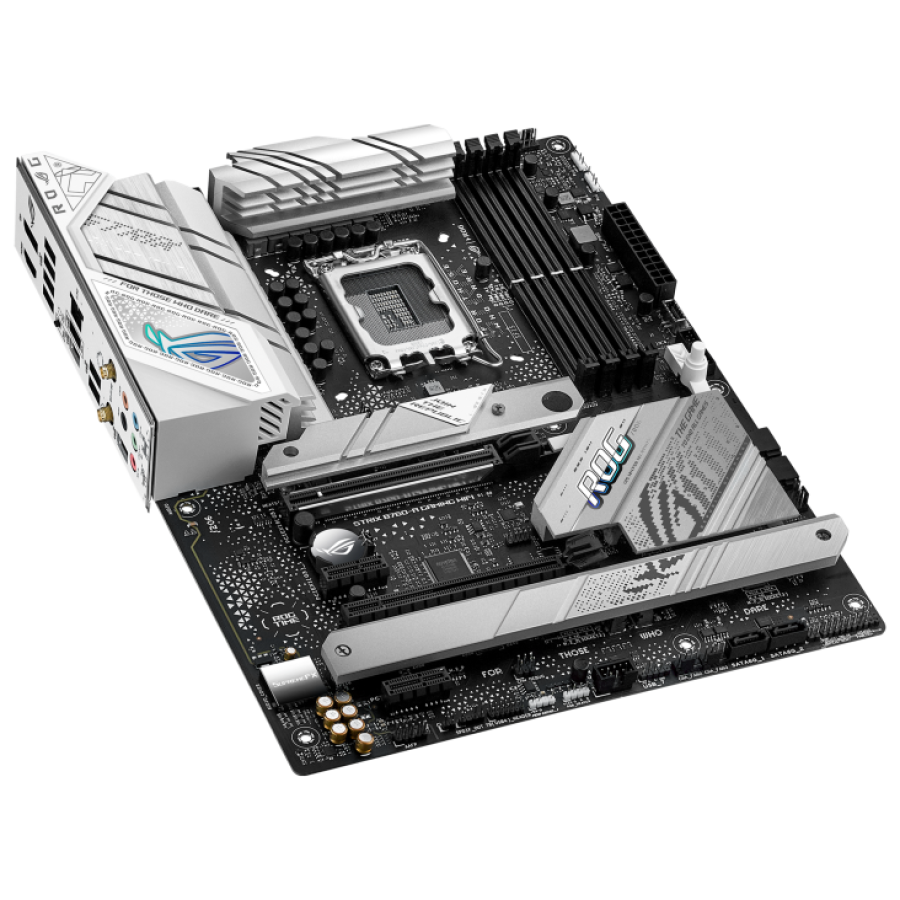

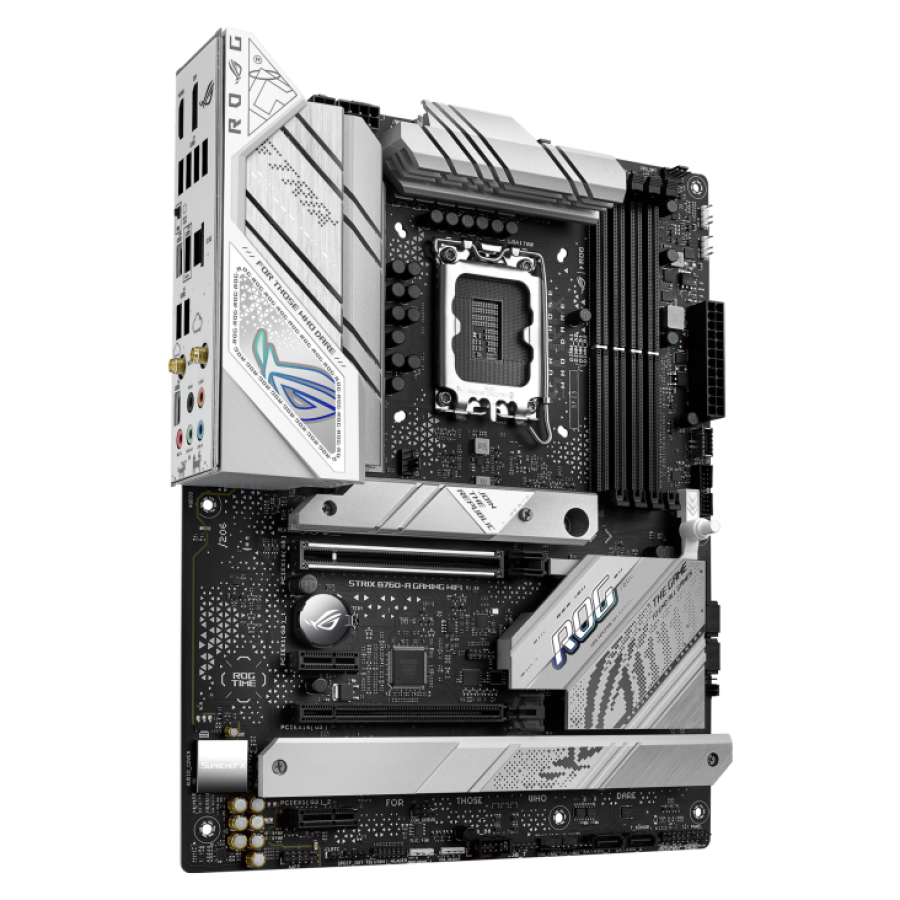

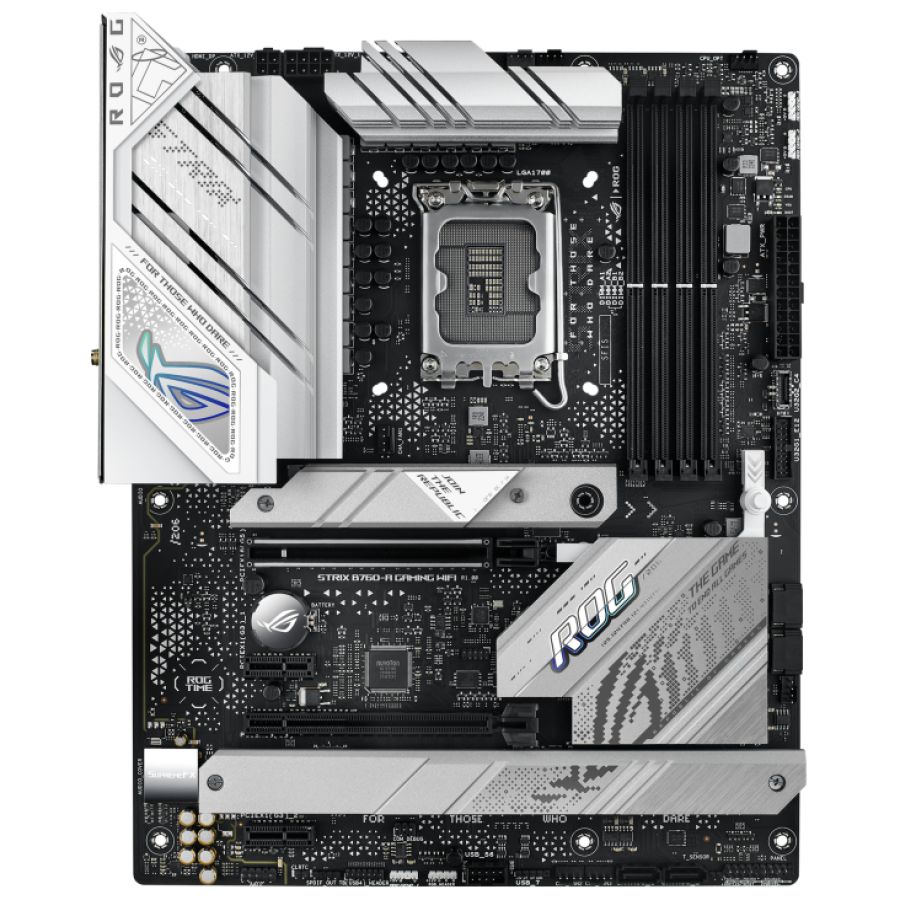

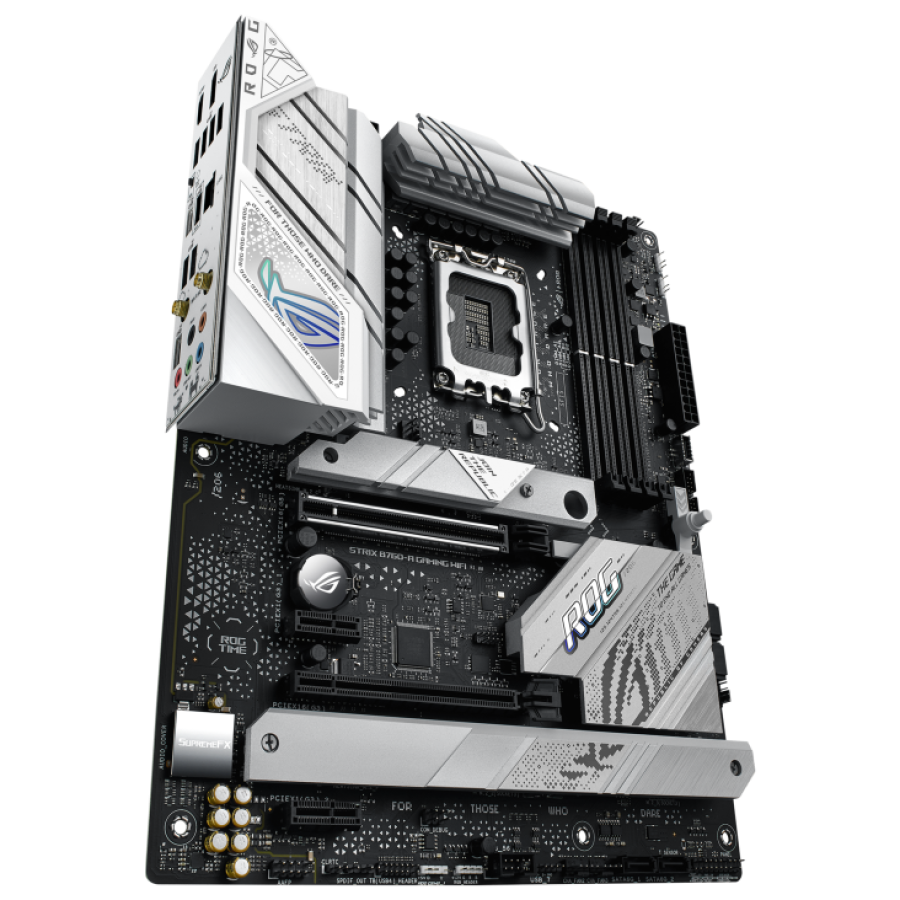

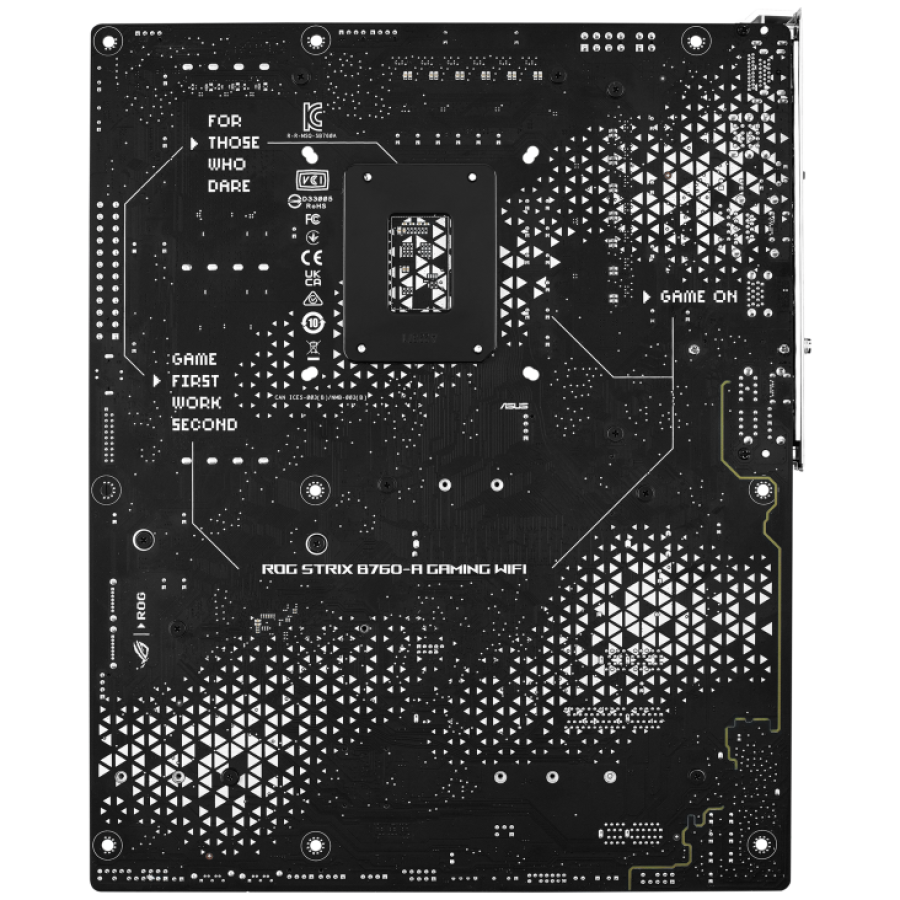

Pamatplate ASUS ROG Strix B760-A Gaming WiFI

Intel B760

ATX

Intel

LGA 1700

Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*

DDR5

DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*

4

192GB

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback

1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**

Ir

2

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-5 pin System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header

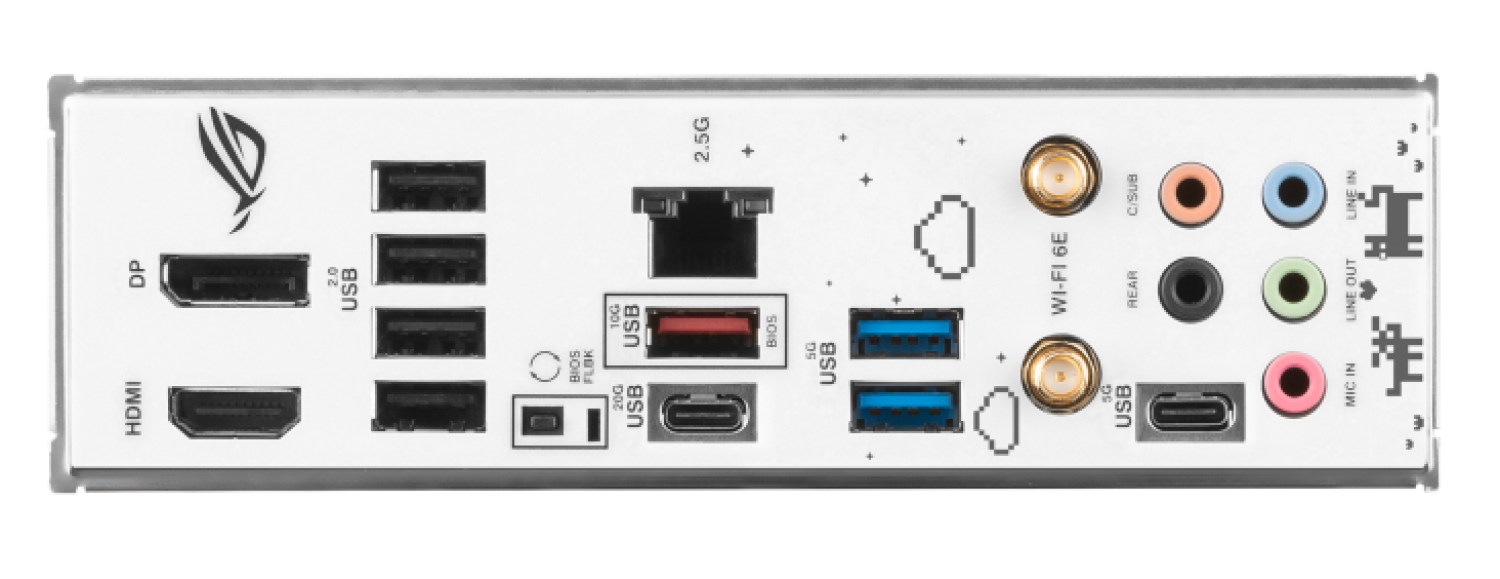

1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 (10G) port (1 x Type-A)
3 x USB 3.2 Gen 1 (5G) ports (2 x Type-A, 1 x USB Type-C®)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button

2 gadi
