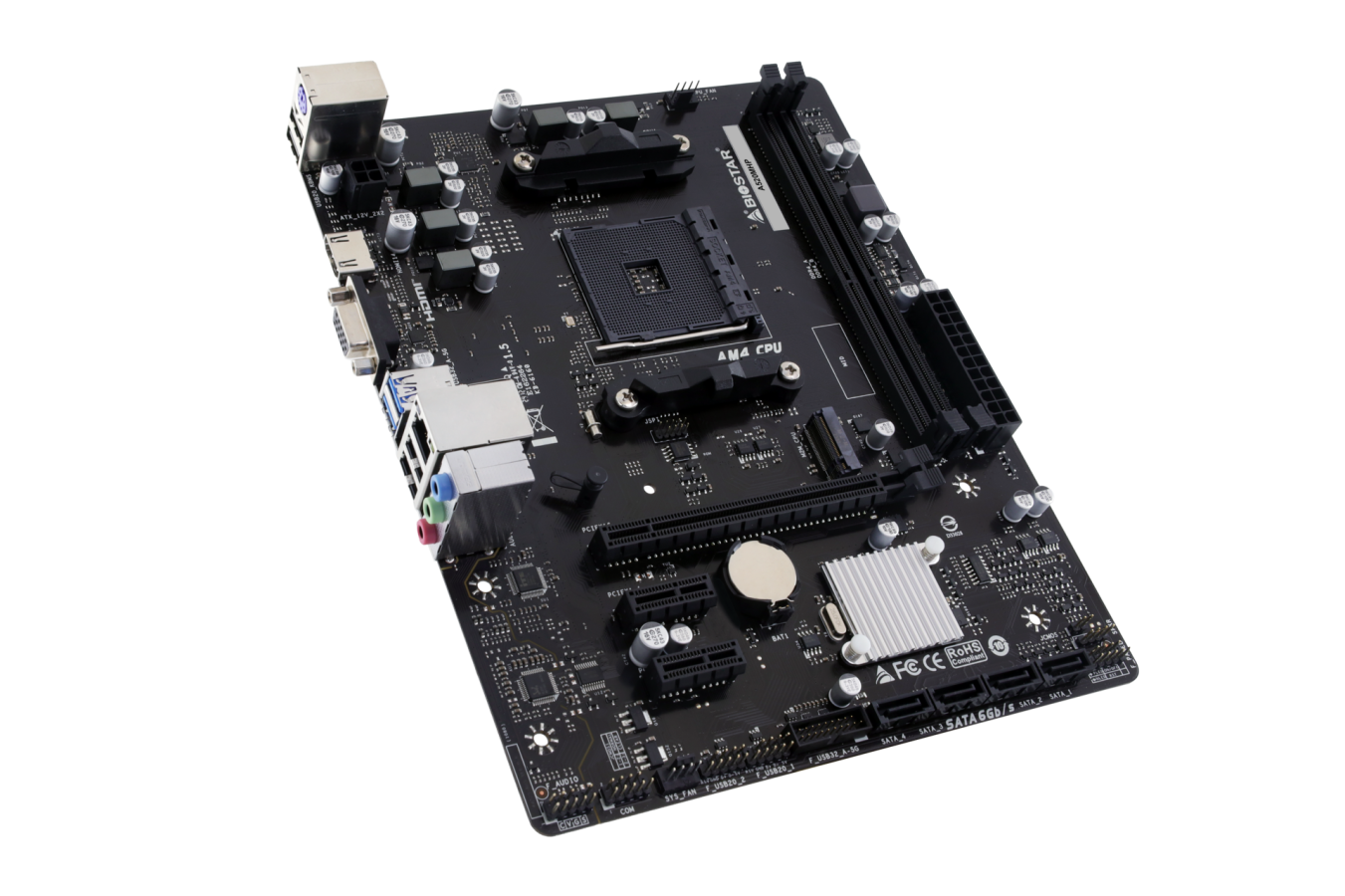

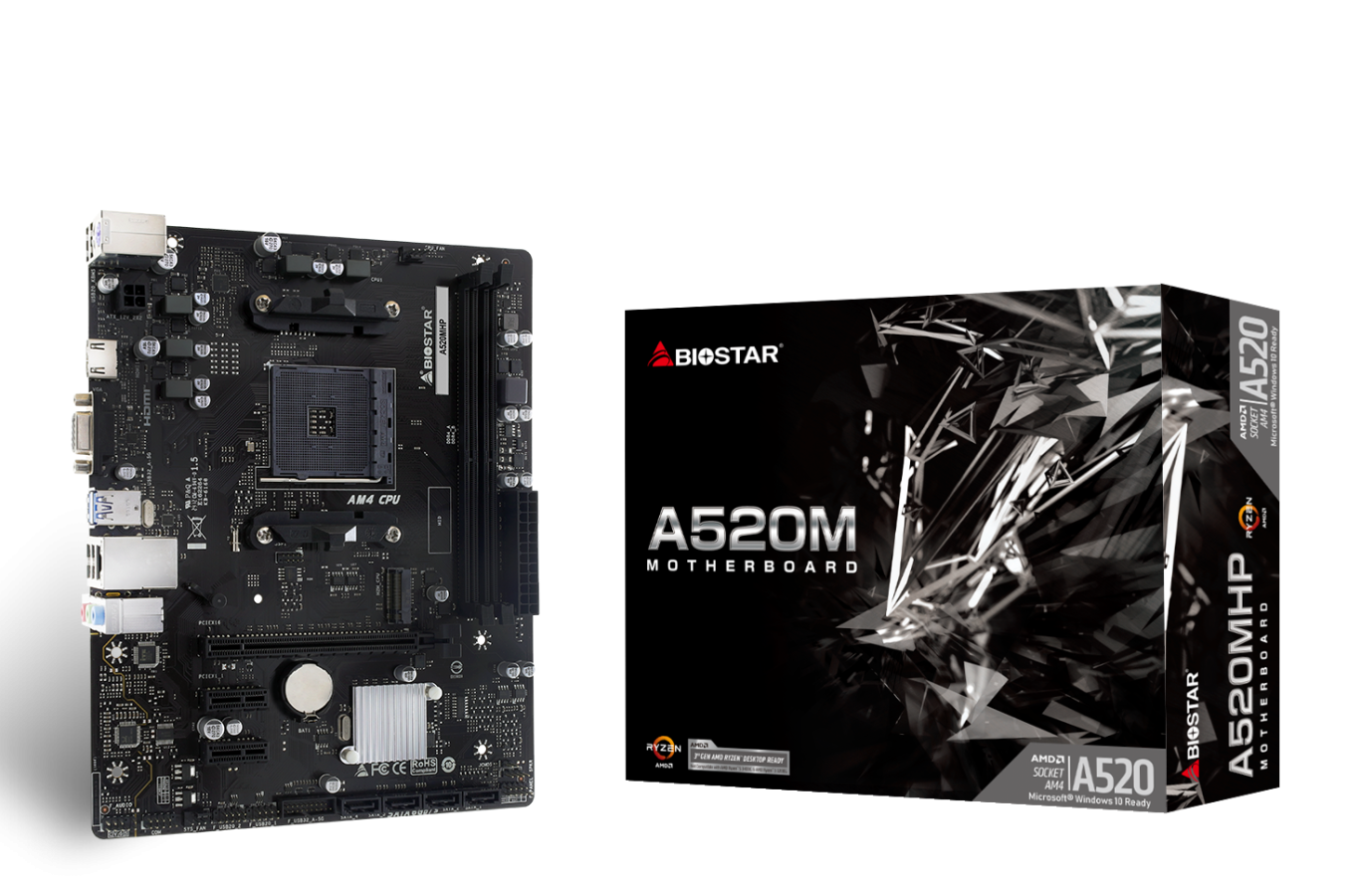

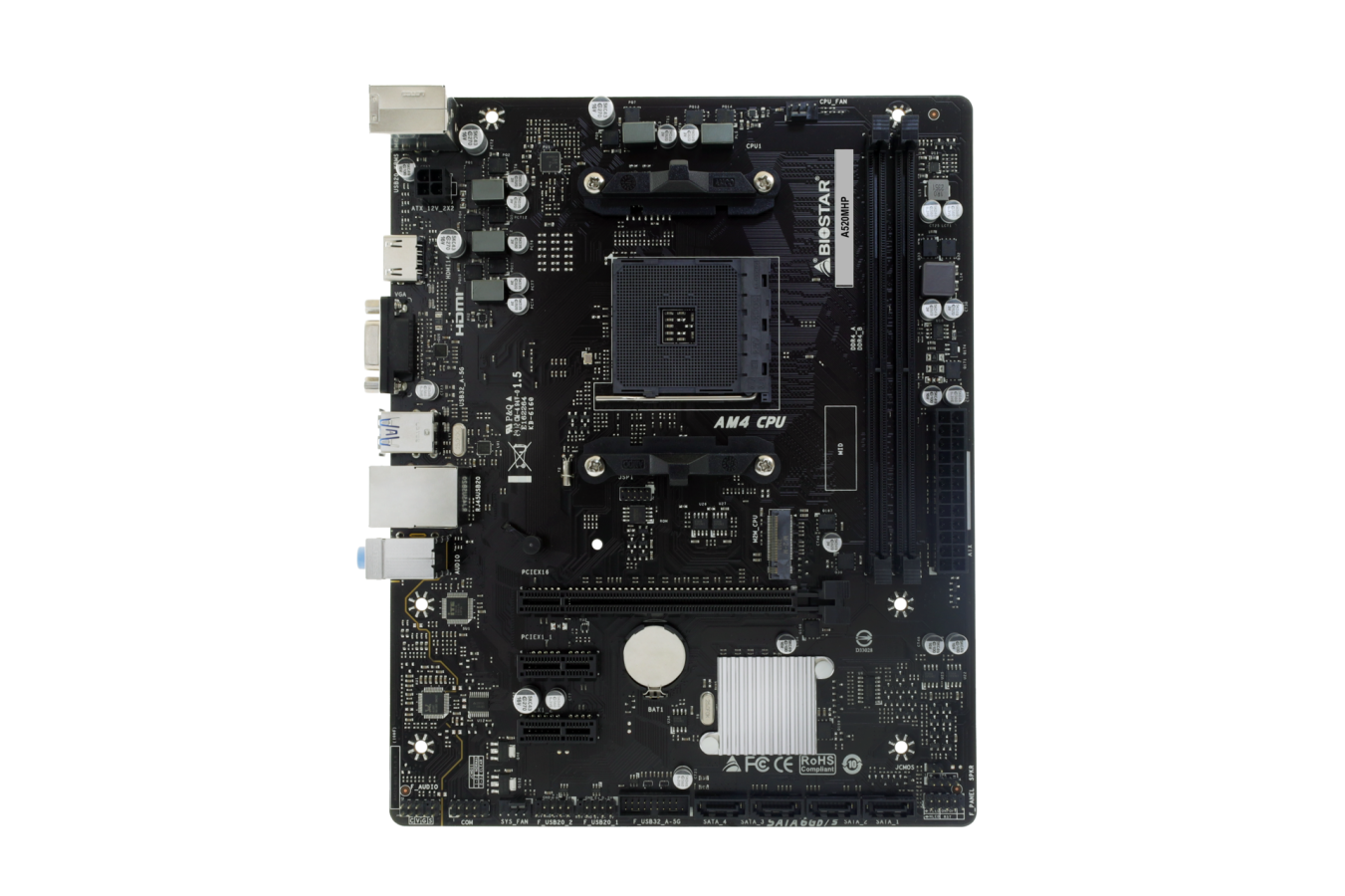

Pamatplate Biostar A520MHP

AMD A520

Micro ATX

AMD

AM4

AMD Ryzen 5000/5000G/4000G/3000/3000G series Processors

DDR4

4th Gen AMD Ryzen Processors (Vermeer CPUs):
Supports Dual Channel DDR4 - 4266+(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/2667/ 2400/2133
4th Gen AMD Ryzen with Radeon Graphics Processors (Cezanne APUs): Supports Dual Channel DDR4 - 4400+(OC)/ 4266(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/2933/ 2667/ 2400/2133
3rd Gen AMD Ryzen Processors (Matisse CPUs):
Supports Dual Channel DDR4 - 4266+(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/2667/ 2400/2133
3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs):
Supports Dual Channel DDR4 - 4400+(OC)/ 4266(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/2933/ 2667/ 2400/2133
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module

2

64 GB

Realtek ALC897
7.1 Channels, High Definition Audio, Hi-Fi (Front)

Realtek RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

Nav

1

4 x SATA III 6.0Gb/s Connector
1 x USB 3.2 (Gen1) Header
(each header supports 2 USB 3.2 (Gen1) ports)
2 x USB 2.0 Header
(each header supports 2 USB 2.0 ports)
1 x 4-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Clear CMOS Header
1 x COM Serial Header
1 x Internal Stereo Speaker Header

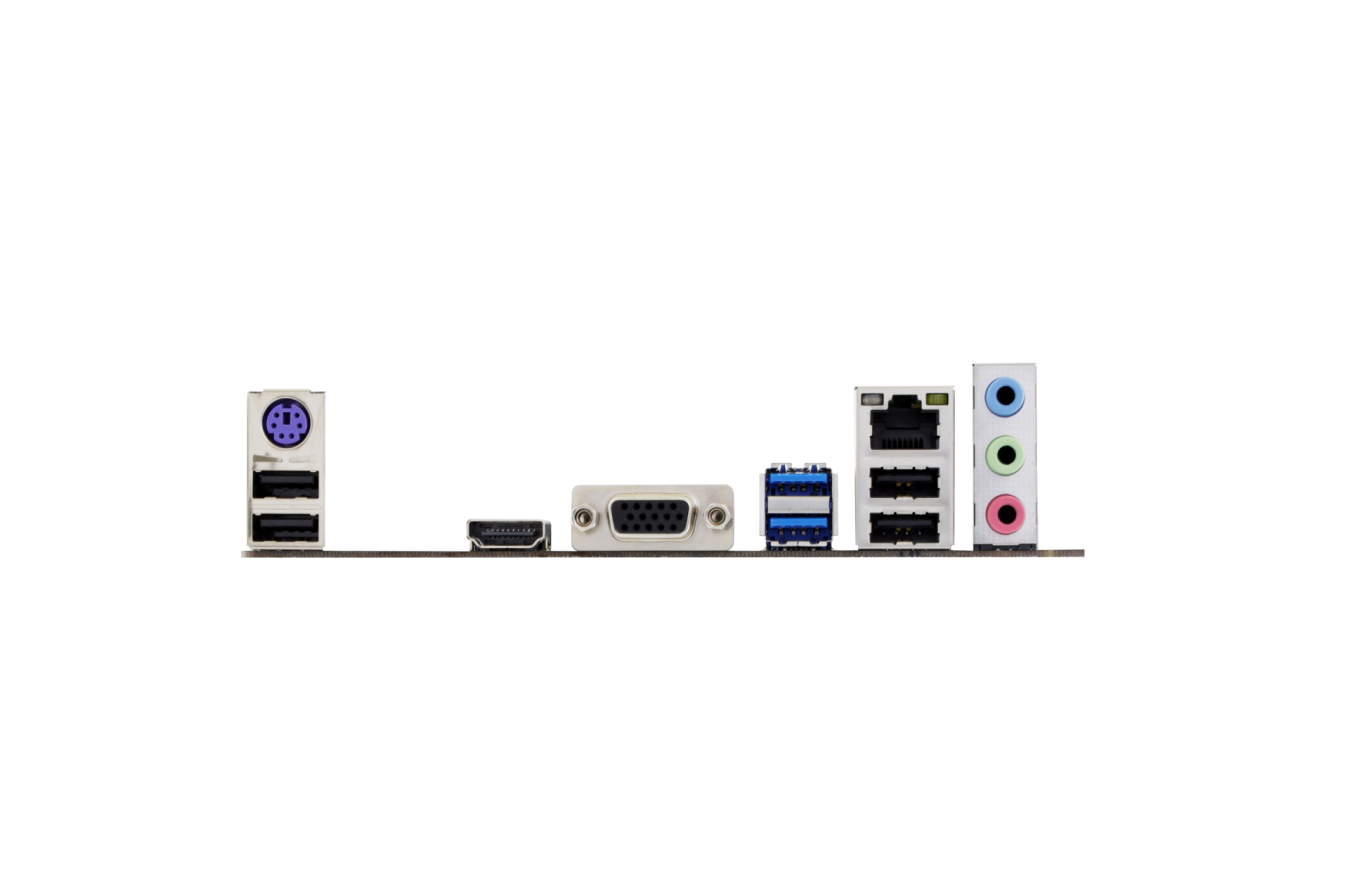

1 x PS/2 Keyboard/ Mouse
1 x VGA Port
1 x HDMI Port
1 x LAN port
2 x USB 3.2 (Gen1) Port
4 x USB 2.0 Port
3 x Audio Jack

2 gadi
